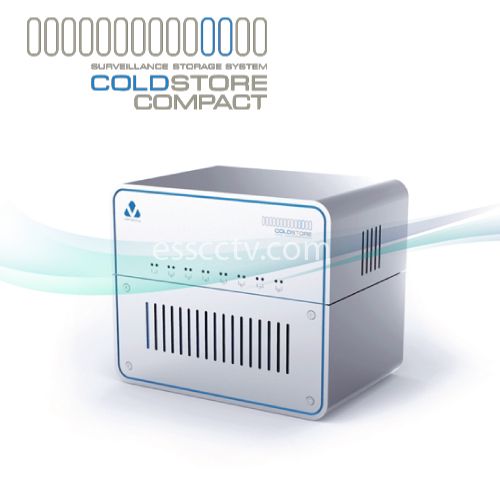

COLDSTORE Compact’s sequential recording system is ideal for low-power surveillance storage and greatly increases hard disk reliability
| GENERAL | ||
| Storage array type | Network attached sequential array running L.A.I.D.™ with S.F.S.™ | |
| disk filing system | ||
| Interface | Gigabit Ethernet | |
| Data throughput | 400Mbit/sec (unlimited scalability with multiple COLDSTORE Compact units) | |
| SYSTEM | ||
| O.S | Embedded Linux | |
| System integration | Direct from 3rd party VMS application (SDK available) | |
| Configuration & management | Over LAN via Veracity SITESCAPE™ or SDK | |
| VMS Compatibility | See website for latest information on all supported VMS systems | |
| Directly compatible with Veracity’s TRINITY™ system architecture | ||
| CAPACITY | ||
| Drive bays | 8 x 2.5” SATA (disk trays included) | |
| Maximum capacity | Raw – 32TB, Effective – 28TB. (Mirrored overlapping pair mode) | |
| (with 4TB disks) | (28TB is sufficient for 32 HD cameras for 31 days at 2.5 Mbps per camera) | |
| POWER | ||
| Power supply | 12V DC, 3A external PSU | |
| Power consumption | 16 watt average | |
| TIME SYNCHRONISATION | ||
| Time synchronization | via NTP (recommended) | |
| PHYSICAL/ENVIRONMENTAL | ||
| Dimensions | W 225mm, H 188mm, D 150mm. (W 8.85”, H 7.40”, D 5.90”) | |
| Weight | 3.9kg. (8.6lbs) (without disks) | |
| Wall mounting | VESA-compatible wall mount points on 75mm centres with M4 holes | |
| Operating temperature | 5ºC to 50ºC (41ºF to 122ºF) | |
| Cooling | Low speed fan - near silent operation | |
| Relative humidity | Up to 85%, non-condensing. | |
| Compliance | CE, FCC, RoHS | |
