EYEMAX TPB-204 HD-TVI 1080p(2MP) Box Camera w/ Dual Power Input

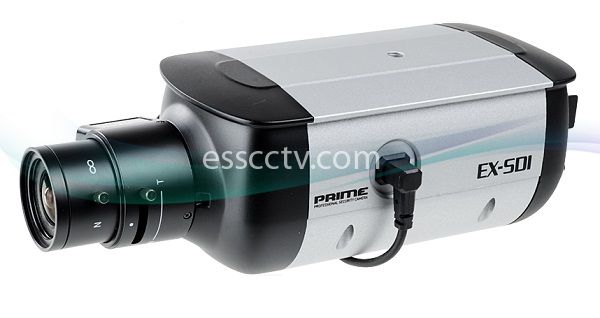

Images are for illustration purpose and may not show the actual product.
Model:
TPB-204
Item #: 1746
Manufacturer: Eyemax
MSRP:
$150.00
Our Price:
$113.00
(You save: $37.00)
- D-TVI (1080P, 720P, 720P Crop)1 lux at F1.2 / 0.1 lux (B/W)
- True Day & Night : This camera has a function that automatically selects the mode that is appropriate for daytime or nighttime conditions. The COLOR mode operates in daytime conditions to provide optimum colors, and BW mode operates in nighttime conditions to enhance the definition of the image.
- DNR (Digital Noise Reduction) : By using the DNR chip, the amount of low illuminance noise has been significantly reduced, and the signal to noise ratio (S/N ratio) as well as horizontal resolution have been improved, resulting in a clear and sharp image display even in the dark.
- Digital WDR (Wide Dynamic Range) : By adopting a proprietary 1/2.9 inch SONY CMOS (IMX-222) chip, the camera delivers clear, high quality pictures even in backlight, by increasing exposure in dark areas while decreasing it in bright areas; a corrected image with clear details results.
- Privacy Function : The PRIVACY function enables you to select and record only chosen area among twenty eight areas.
- Additional Function : Exposure, White Balance, Image, Backlight, Day & Night, DNR, Motion Serial, Special, System, Exit Function are available.
- Controlled OSD Menu : The camera can be controlled by selecting text displayed on the monitor screen.
| Resolution |
1080P, 720P, 720P Crop |
| Sensor |
1/2.9 inch SONY CMOS (IMX-222) |
| Total Pixels |
2000(H) x 1241(V) = 2,482,000 |
| Effective Pixels |
1944(H) X 1092(V) = 2,122,648 |
| Scanning System |
Progressive |
| S/N (Y Signal) |
More than 52 dB(AGC Off) |
| Video Output |
TVI / CVBS: 1.0Vp-p (75ohm) |
| Min. Illumination |
1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance |
AUTO / AUTO EXT / PRESET / MANUAL |
| Shutter |
AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens-up |
OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR |
OFF / LOW / MIDDLE / HI |
| Backlight |
OFF / WDR / BLC / HLM |
| ACE |
OFF / LOW / MIDDLE / HIGH |
| Day & Night |
AUTO (Day <--> Night TIME Change) , COLOR , (B/W / EXTERN : IR product setting) |
| Privacy |
OFF / ON (16 Zone) |
| Motion |
OFF / ON (16 Zone) |
| D. Zoom |
0 ~ 127 |
| Flip |
OFF / ON |
| Freeze |
OFF / ON |
| Language |
ENG, CHN, CHN(S), JPN, KOR |
| Sharpness |
ADJUSTABLE (0~10 STEP) |
| Defog |
OFF / SET |
| Comm |
RS-485(PELCO-D) |
| Smart IR |
ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature / Humidity |
-10°C~+50°C / 30% ~ 80% RH |
| Storage Temperature / Humidity |
-20°C~+60°C / 20% ~ 90% RH |
| Power |
DC 12V / AC 24V Dual Power |
| Signal Transmission |
The distant difference is occurred according to cable option and other circumstances. (coaxial cable 300M) |
