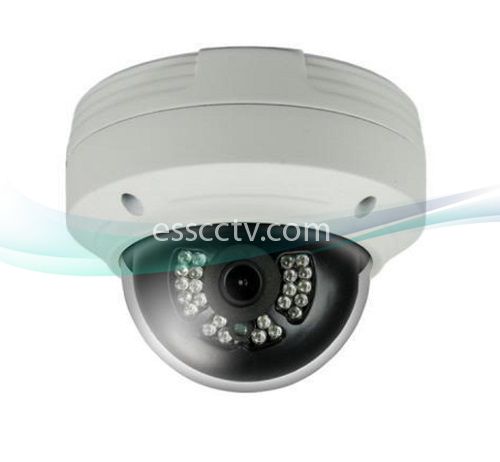

TIT-CA222F-W HD-TVI / AHD 1080p(2MP) IR Dome Camera w/ 24 IR & 3.6mm Fixed Lens
Images are for illustration purpose and may not show the actual product.
Model:
TIT-CA222F-W
Item #: 1726
MSRP:
$95.00
Our Price:
$70.00
(You save: $25.00)
- TVI & AHD ouput
- Switchable between AHD and CVBS (Analog)
- Maximum Resolution: 1080p (1920 x 1080) Real Time
- ICR Auto Switch, True Day & Night
- 24 IR LED
- Up to 60ft IR Night View Distance
- DNR
- 3.6mm Fixed Lens
- Water Proof (IP66)
- UTC (COC : Control Over Coax) support
- DC 12V / White Casing
| Image Sensor |
1/3” Sony CMOS Sensor |
| Pixels |
1280x720 / 1920x1080 |
| Signal System |
PAL / NTSC |
| Min. Illumination |
0 Lux (LED ON) |
| Lens |
3.6mm Fixed |
| IR Visible Distance |
up to 60ft |
| IP Rank |
IP66 |
| Video Out |
HD-TVI / AHD (switchable to analog) |
| Resolution |
720p (1280x720), 1080p (1920x1080) |
| Frame Rate |
30fps (60Hz), 25fps (50Hz) |
| ICR |
Yes |
| DNR |
Yes |
| S/N Ratio |
>52dB (AGC OFF) |
| Electronic Shutter |
1/50s~1/67500s |
| AGC |
Yes |
| White Balance |
Auto White Balance |
| Power |
DC 12V ±10% |
| Temperature |
−40°C ~ 70°C (−40°F ~ 158°F) |
| Humidity |
10% ~ 90% |
| Dimension |
ø116mm x 91mm (Φ : 4.56in × Height : 3.58in) |
