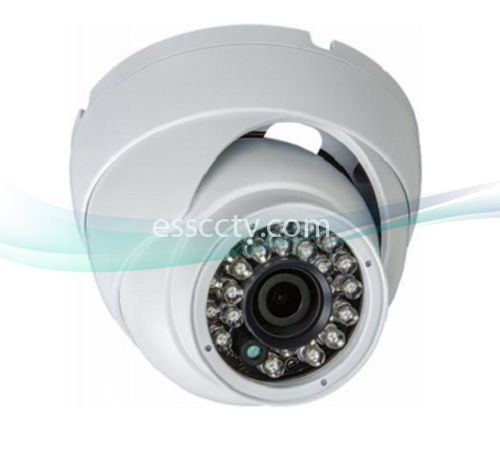

EYEMAX XIB-2022-36 HD-SDI 1080p EYEBALL IR Dome Camera with 3.6mm Fixed Lens & 25 IR LEDs
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
XIB-2022-36
Item #: 1642
Manufacturer: Eyemax
MSRP:
$110.00
Our Price:
$83.00
(You save: $27.00)
- 1/3" Sony CMOS
- HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 25pcs)
- Upgraded water-resistant IP-67 housing / Smart IR / True Day & Night(ICR)
- DNR (Digital Noise Reduction) / Easy installation
- 3.6mm Mega Pixel IR Fixed lens
| Resolution |
HD-SDI(1080p, 720p) / 1000 TV line over |
| Sensor |
1/3" Sony CMOS |
| Total Pixels |
2010(H) × 1108(V) = 2.2M Pixel |
| Effective Pixels |
1944(H) × 1092(V) = 2.1M Pixel |
| Scanning System |
Progressive |
| S/N (Y signal) |
More than 52 dB (AGC Off) |
| Video Output |
SMPTE292M (HD-SDI) |
| Min.Illumination |
0 lux at IR On |
| White Balance |
Auto |
| Electronic Shutter Speed |
Auto (1/30sec ~ 1/60,000sec) |
| Brightness |
Adjustable (0 ~ 20 Step) |
| DNR |
Middle |
| Day & Night |
Extern |
| Language |
English |
| Operating Temperature / Humidity |
14°F~122°F (-10°C~+50°C) / 30%~80% RH |
| Storage Temperature / Humidity |
-4°F~+140°F (-20°C~+60°C) / 20%~90% RH |
| Power |
DC 12V Only |
