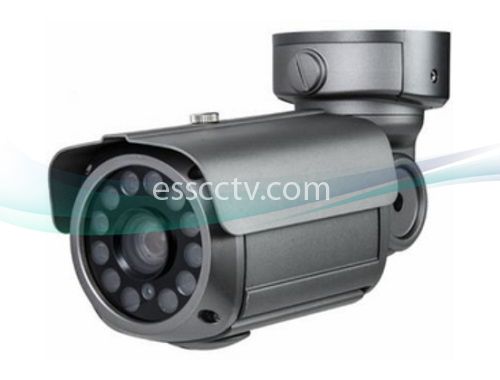

• 1/2.9” Sony CMOS
• 6~50mm Auto-Iris Vari-Focal Lens
• 12 COB IR LEDs • True Day & Night(ICR)
• DNR (Digital Noise Reduction)
• AWB (Auto White Balance)
• SENS-UP
• EX-SDI / HD-SDI selectable
• DC 12V
| Resolution | 1080p, 720p, 720p CROP |
| Sensor | 1/2.9 inch Sony CMOS |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | Progressive |
| S/N (Y Signal) | More then 52 dB (AGC Off) |
| Video Output | SDI / CVBS: 1.0Vp-p (75ohm) |
| Min. Illumination | IR Product: 0 Lux at IR On General Product: 1 Lux at F1.2/0.1 Lux (B/W) |
| White Balance | Auto / Auto Ext / Preset / Manual |
| Shutter | Auto / Manual (1/30sec ~ 1/60,000sec) |
| Brightness | Adjustable (0~20 Step) |
| Sens Up | OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR | OFF / Low / Middle / High |
| Backlight | OFF / WDR / BLC / HLM |
| ACE | OFF / Low / Middle / High |
| Day & Night | Auto (Day <--> Night Time Change), Color, B/W, Extern, MDIR (Search Option) |
| Privacy | OFF / ON (16 Zone) |
| Motion | OFF / SET |
| Digital Zoom | 0~127 |
| Flip | OFF / ON |
| Freeze | OFF / ON |
| Language | English, Chinese, Chinese(S), Japanese, Korean |
| Sharpness | Adjustable (0~10 Step) |
| Defog | OFF / SET |
| Communication Port | RS-485 (Pelco-D) |
| Smart IR | Adjustable (0~20 Step) |
| Operating Temp / Humidity | -10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
| Storage Temp / Humidity | -20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
| Power | DC 12V |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M) |
