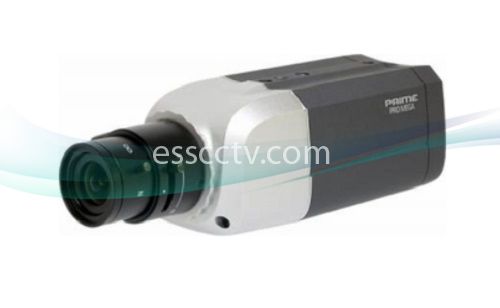

PRIME PRO MEGA IM-BX22 2MP IP Brick Camera

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: IM-BX22
Item #: 1568

MSRP: ~~$180.00~~
Our Price:

$139.00

(You save: $41.00)

2 Megapixel 1/3” CMOS Sensor in High Resolution

H.264/MJPEG Dual Codec & Streaming simultaneously

Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)

Digital I/O for External Sensor and Alarm

Mechanical ICR

3D Noise Reduction

2 Way Audio Support

Micro SD Card Support

Camera
Sensor	2 Mega Pixel CMOS sensor
Scan Method	Progressive
Number of Effective Pixel (H*V)	1600×1200
Minimum Illumination	1Lux (AT 10 IRE F1.8 Lens) 71db
SNR(max)	42.3db
Auto White Balance	Yes
Auto Gain Control	Yes
Backlight Compensation	on/off
Noise Reduction	Yes
Electronic Shutter & Manual Shutter	Auto, Slow Shutter(2X~32x)
Pan Coverage	20° (-10°~+10°)
Video
Video Compression	MJPEG and H.264 Dual codec, dual streaming (720P/30FPS+VGA/30FPS), multiple profiles, 3GPP)
Video frame rate	Dual Streaming (720P/30FPS+VGA/30FPS)
Resolution	H.264 : HD(1280x 720) / D1/ CIF / QCIF MJPEG: 1600x1200 / 1280x720 / 800x600 / D1 / CIF / QCIF
Bit rate control	16kbps ~ 4Mbps
Digital Zoom (PC side)	Yes, x 1/2, x 2, x 4
Image Rotation (PC side)	Mirror
DNR	Yes
Audio
2-way Audio	Yes
Compression	AMR, G.711 , G.726 / Configure Bit Rate
Protocol Supported
Streaming Protocols	RTSP / RTP / UDP / RTSP / RTP / TCP / RTSP / RTP / HTTP tunneling, LAN multicast
Other protocols	IPv4, HTTP, TCP, ICMP, QoS, DHCP, NTP, SMTP, FTP, UPnP, PPPOE, DNS, DDNS
Processors and Memory
CPU	ARM9 SOC
Flash and Memory	8MB NOR flash, 64MB SDRAM 16MB ROM, 256MB DDR II RAM
I/O and connectors
Reset to Factory default	Button
LAN	RJ-45 connector
Audio	Microphone input x 1 / Audio-out x 1
Software
Browser	Internet Explorer 6.0 or above
Application Software	VMS-64 application software
OS supported	Microsoft Windows 2000, XP , Vista, Windows 7
ETC
Power	DC 12V / POE
Dimensions	2.5"(W) x 2.25"(H) x 5.5"(L)
Operating temperature	-10°C~ 45°C
Storage temperature	-20°C~ 70°C
Humidity	0% ~ 90% non-condensing
Approvals	CE, FCC Class A, RoHS
