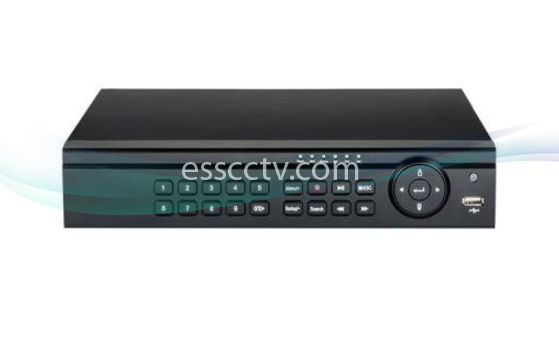

NVST-TL204-04 4 Channel Network Video Recorder(NVR) for IP cameras up to 2MP w/ 4 CH PoE Input
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
NVST-TL204-04
Item #: 1535
MSRP:
$190.00
Our Price:
$129.00
(You save: $61.00)
- Support 4 CH 1080P@30fps or 960P@30fps or 720P@30fps IP input Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : support 4 CH playback
- Search : calendar / time, events ( alarm, motion )
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported Remote control via IE or CMS : preview, playback, backup, and configuration
- 4 PoE network ports; support IPC direct connection to NVR; support PoE power supply
- Support dual stream technology to encode recording stream and network stream separately; network stream can be adjustable to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Powerful smart phone surveillance supporting iPhone, Andriod
- Giga ethernet interface to get the fastest transmission
| SYSTEM |
| Compression |
Standard H.264 / MPEG4 |
| CPU |
Cortex A9 |
| OS |
Embedded Linux |
| VIDEO |
| Output |
VGA × 1 : 1920 × 1080
HDMI × 1 : 1920 × 1080 |
| IP INPUT |
| Resolution |
1080P / 960P / 720P |
| Frame Rate |
4CH 1080P / 960P / 720P @ 30fps |
| AUDIO |
| Input |
4CH IPC audio input |
| Output |
RCA × 1 |
| 2-way audio |
RCA × 1 |
| RECORD |
| Resolution |
1080P / 960P / 720P / D1 |
| Frame Rate |
120fps(NTSC) / 100fps(PAL) |
| Bit Rate |
2Mbps ~ 6Mbps |
| Encode |
CBR |
| Quality |
6 Level |
| Mode |
Manual, Timer, Motion, Sensor |
| File Manager |
Lock, Unlock, Reserving Time |
| PLAYBACK |
| Playback |
4 CH |
| Search |
Time / calendar search, event ( motion, external alarm ) |
| Smart Search |
Highlighted date and time to display the channel record |
| Function |
Play, Pause, FF, FB, Digital zoom |
| ALARM |
| Mode |
Sensor, Motion, Video Loss |
| Input |
No local input, support 4 CH IPC alarm input |
| Output |
No |
| Triggering |
Record, e-mail, etc |
| NETWORK |
| Interface |
RJ45 10M/100M × 1 |
| PoE |
RJ45 × 4 |
| Protocol |
TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS |
| Others |
20 users online users, dual stream |
| CELLPHONE |
| OS |
iPhone, Andriod |
| Function |
Multi-screen surveillance (for certain model), record, snapshot, save the device list |
| PORT |
| HDD |
SATA × 1 |
| RS485 |
No |
| USB |
USB2.0 × 2, one for mouse, another for USB backup device |
| Remote Controller |
Optional |
| OTHERS |
| Power Supply |
DC 48V |
| Consumption |
< 7W (without HDD) |
| Dimensions |
300×270×58mm (W×D×H) |
| Work Environment |
−10 ~ 55°C , 10% ~ 90% Humidity |
