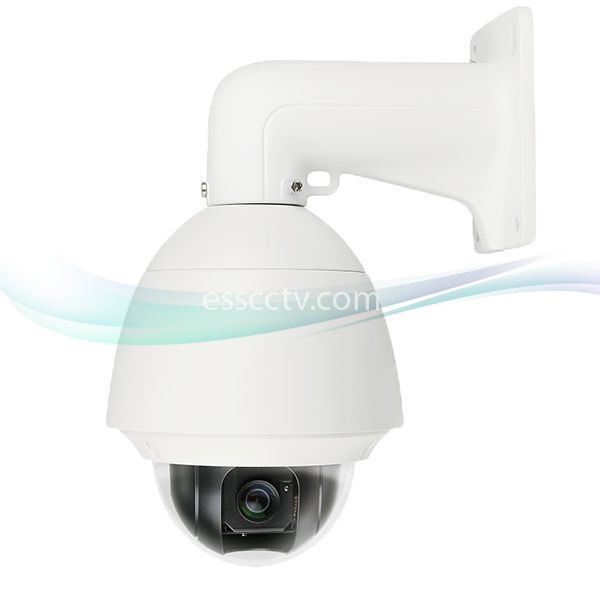

LTS PTZH212X23 HD TVI 2.1MP 1080P 4-92mm 23X Optical Zoom PTZ High Speed Dome Camera
Images are for illustration purpose and may not show the actual product.
Model:
PTZH212X23
Item #: 1497
Manufacturer: LT Security Inc
MSRP:
$700.00
Our Price:
$516.00
(You save: $184.00)
- 2.1MP High Definition
- 1920X1080P@30fps
- 23X Optical Zoom
- Self-adaptive, Pelco-P, Pelco-D
- 3D Privacy Masking
- True Day/Night, 3D DNR, DWDR
- AC 24V, IP66
- Indoor/Outdoor
- 4"(Φ)
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.001Lux@(F1.6, AGC ON) |
| Max. Image Resolution |
1920x1080 |
| White Balance |
Auto/Manual/ATW/Indoor/Outdoor |
| AGC |
Auto / Manual |
| S / N Ratio |
≥ 50dB |
| 3D DNR |
Support |
| DWDR |
Support |
| Shutter Time |
1/1~ 1/10,000s |
| Day and Night |
IR Cut Filter |
| Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| Lens |
| Focal Length |
4-92mm, 23x |
| Digital Zoom |
16x |
| Zoom Speed |
Approx.3s (Optical Wide-Tele) |
| Angle of View |
49 - 2.2 degree (Wide-Tele) |
| Min. Working Distance |
10 - 1000mm (Wide-Tele) |
| Aperture Range |
F1.6 ~ F3.5 |
| Focus Mode |
Auto / Semiautomatic / Manual |
| Pan and Tilt |
| Pan Range |
Pan: 360° endless |
| Pan Speed |
Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160° |
| Tilt Range |
0° - 90° (Auto Flip) |
| Tilt Speed |
Tilt Manual Speed: 0.1° - 120°/s, Tilt Preset Speed: 120°/s |
| Number of Preset |
256 |
| Patrol |
8 Patrols, Up to 32 Presets Per Patrol |
| Pattern |
4 Patterns, with the total recording time not less than 10 minutes |
| Park Action |
Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan |
| RS-485 Communication Diagnosis |
Support |
| Input/Output |
| HD Output |
1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| CVBS Output |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| Alarm Input |
2 |
| Alarm Output |
1 |
| RS-485 Interface |
Half-duplex mode;Self-adaptive Pelco-P, Pelco-D protocol |
| Infrared |
| |
|
| IR Intensity |
Automatically adjusted, depending on the zoom ratio |
| General |
| Power |
24V AC, Max. 12W |
| Working Temperature/ Humidity |
-30 °C-65°C(-22°F-149°F)/90% or less |
| Impact Protection |
IK08 |
| Dimensions |
Φ7.3”×13.0”(Φ185×330mm) |
| Weight |
8.8lbs(4.0kg) |
