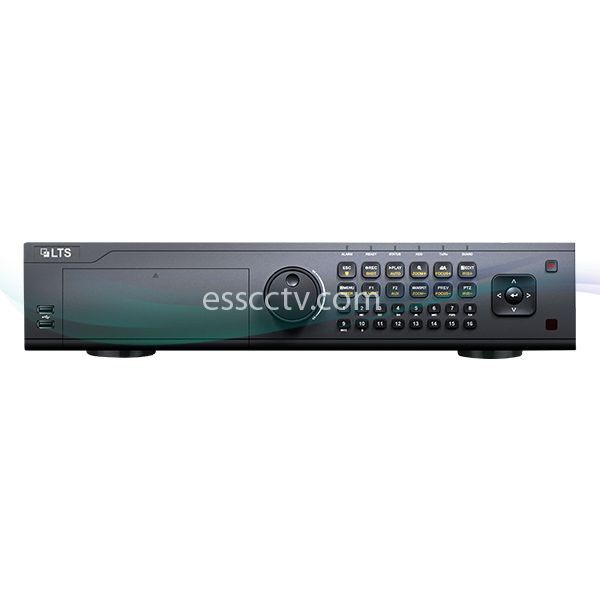

LTS LTD9224T-FA 24CH HD TVI or Analog and 16CH IP Triple Hybrid 720P 1080P DVR Recorder

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: LTD9224T-FA
Item #: 1421
Manufacturer: LT Security Inc

MSRP: ~~$1,300.00~~
Our Price:

$989.00

(You save: $311.00)

24 Channel Digital Video Recorder

Analog & HD-TVI Video In: 24CH

IPC Input: 16CH 1080P@30fps

Video Output: 1 VGA, 2 HDMI up to 1080P

Playback Channel: 24CH

Audio In/Out: 16CH/1CH, RCA

Alarm In/Out: 16/8

Network: 10/100/1000M, 2x RJ45

Storage: 8 SATA up to 48TB

eSATA: 1

USB: 3 USB 2.0

PTZ: 1 RS485

Support POS #: 16

Video / Audio input
Video Compression	H.264
Analog and HD-TVI Video Input	24CH
Video Input Interface	BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive
IP Input	Add up to 16CH ( 1080P@30fps)
Audio Compression	G.711u
Audio Input	16-CH, RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio Input	1-CH, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI / VGA output	2 HDMI (1 Spot Out) / 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz
Encoding resolution	Main Stream: 1080P (Non-Real-Time) / 720P / VGA / WD1 / 4CIF / CIF Sub-Stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA
Frame rate	Main Stream: 1 / 16 fps ~ Real-Time Frame Rate Sub-Stream: 1 / 16 fps ~ Real-Time Frame Rate
Video Bit Rate	32 Kbps-6 Mbps
Audio Output	1CH, RCA (Linear, 1 kΩ)
Audio Bit rate	64 Kbps
Dual-Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	24CH
Playback Resolution	1080P / 720P / V GA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote Connections	128
Network Protocols	TCP / IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA	8 SATA Interfaces for 8 HDDs; 1 eSATA Interface
Capacity	Up to 6TB Capacity for Each Disk
External interface
Network Interface	2:10M / 100M / 1000M Self-Adaptive Ethernet Interface
Serial Interface	RS-232, RS-485, Keyboard
USB Port	3 × USB2.0
Alarm In/ Out	16/ 8
General
Power Supply	100 ~ 240VAC, 47 ~ 63HZ
Consumption	≤ 60W
Working Temperature	14°F - 131°F (-10 °C ~ +55 °C)
Working Humidity	10% ~ 90%
Casing	19in Rack-Mounted 2U Casing
Dimensions ( WxDxH)	17.5 × 18.5 × 3. 5in (445 × 470 × 90mm)
Weight	17.6lb (≤8kg)
