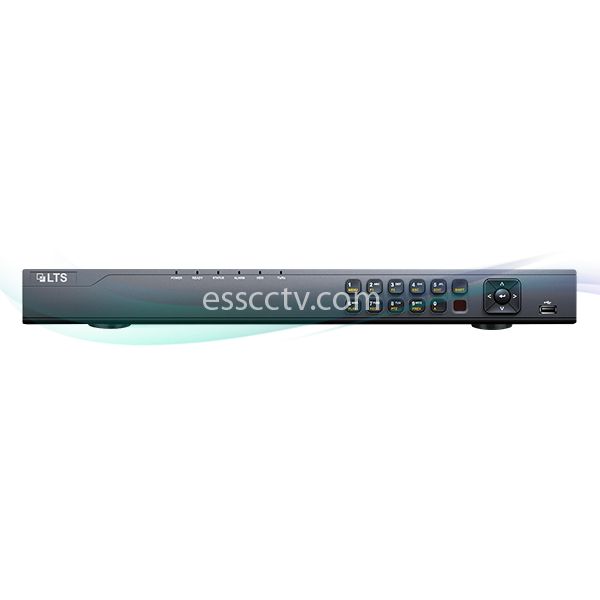

LTS LTD8308T-ST 8CH HD Triple Hybrid TVI IP & Analog Megapixel 1080P 30Fps DVR Recorder
Images are for illustration purpose and may not show the actual product.
Model:
LTD8308T-ST
Item #: 1411
Manufacturer: LT Security Inc
MSRP:
$360.00
Our Price:
$258.00
(You save: $102.00)
- 8 Channel Digital Video Recorder
- Analog & HD-TVI Video In: 8CH
- IPC Input: 2CH 1080P@30fps
- Video Output: VGA/HDMI up to 1080P
- Playback Channel: 8CH
- Audio In/Out: 4CH/1CH, RCA
- Alarm In/Out: 8/4
- Network: 10/100/1000M
- Storage: 2 SATA up to 12TB
- USB: 3 USB 2.0
- PTZ: 1 RS485
- Support POS #: 4
| Video / Audio input |
| Video compression |
H.264 |
| HD-TVI video input |
8-ch |
| Video input interface |
BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input |
2ch(1080p@30fps) |
| Audio compression |
G.711u |
| Audio input |
4-ch, RCA (2.0 Vp-p, 1 kΩ)(using the 1st channel of audio input) |
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output |
| BNC/HDMI/VGA output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Encoding resolution |
Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame rate |
Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate |
| Video bit rate |
32 Kbps-8 Mbps |
| Audio output |
1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate |
64 Kbps |
| Dual-stream |
Support |
| Stream type |
Video, Video & Audio |
| Synchronous playback |
8-ch |
| Playback resolution |
1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network |
| Remote connection |
128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk |
| SATA |
2 SATA interface |
| Capacity |
Up to 6TB capacity for each disk |
| External interface |
| Network interface |
1:10M / 100M self-adaptive Ethernet interface |
| Serial interface |
1; standard RS-485 serial interface, half-duplex |
| USB port |
2 × USB2.0 |
| Alarm in/out |
8/4 |
| General |
| Power supply |
12V DC |
| Power Consumption |
≤ 20 W |
| Working temperature |
-10 °C~+55°C(14°F ~ 131 °F) |
| Working humidity |
10% ~ 90% |
| Dimension |
445 x 290 x 45 mm(17.5" x 11.4" x 1.8") |
| Weight |
≤ 2 kg (4.4 lb) |
