> Item #1363

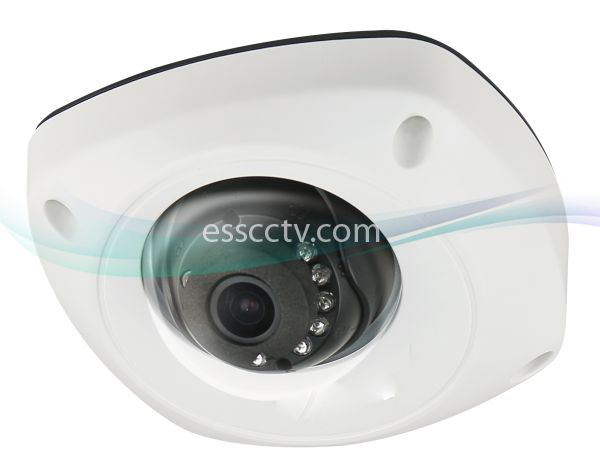

LTS CMIP3132-28S 3.2MP IP Network 2.8mm Lens Built-in Microphone 33ft IR SD Card Slot Dome

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: CMIP3132-28S
Item #: 1363
Manufacturer: LT Security Inc

MSRP: ~~$220.00~~
Our Price:

$178.00

(You save: $42.00)

3.2MP High Definition

1/3” CMOS

2048X1536P@20fps

2.8mm Fixed Lens

10 IR LEDs up to 33ft

3D DNR, DWDR, BLC, VCA

Audio I/O, Alarm I/O

Micro SD/SDHC/SDXC Card Slot

Built-in Microphone

Vandalproof, IP66

DC 12V, PoE

Camera
Image Sensor	1/3” sensor
Min. Illumination	0.07 lux@F1.2, AGC on 0 lux with IR
Shutter Speed	1/25s ~ 1/100,000s
Lens	2.8mm@F2.0
Lens	2048 × 1536:Angle of view: 86° 1920 × 1080:Angle of view: 98.5°
Lens Mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Built-In Mic	Yes
Backlight compensation	Yes,zone configurable
Compression Standard
Video Compression	H.264 / MJPEG
H.264 compression profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio compression	G.711/G.726/MP2L2
Audio bit rate	64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution	2048 × 1536
Frame Rate	60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) 50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS ( iSCSI optional)
Alarm Trigger	Motion detection, tampering alarm,network disconnect , IP address conflict, storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP, UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
On-board Storage	Built-in Micro SD card slot, up to 64 GB
Alarm interface	1/1 alarm I/O
General
Working Temperature /Humidity	-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
Impact Protection	IEC60068-2-75Eh, 50J; EN50102, up to IK08
Ingress Protection Level	IP66
IR Range	Up to 10m(33ft)
Dimension	99.3 × 96.7 × 52.8mm(3.9" × 3.8" × 2.1")
Weight	600g(1.3lb)
