> Item #1313

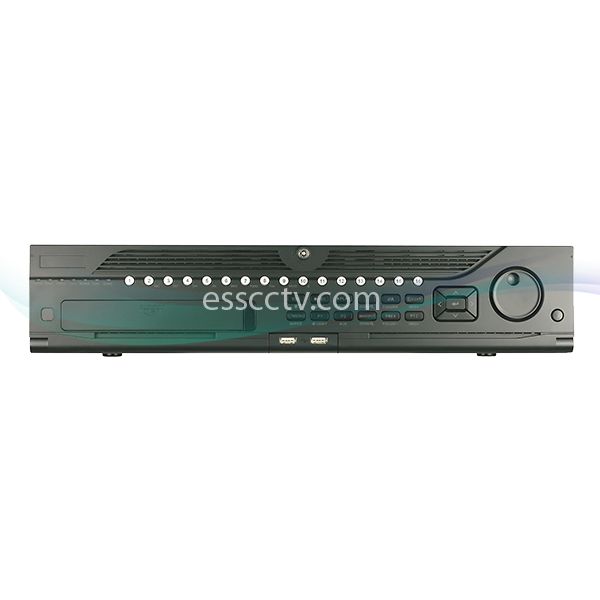

LTS LTN8964-R Platinum Enterprise Level 64 Channel NVR 2U

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: LTN8964-R
Item #: 1313
Manufacturer: LT Security Inc

MSRP: ~~$2,400.00~~
Our Price:

$1,800.00

(You save: $600.00)

64 Channel Network Video Recorder

Support Live View, Recording, Playback up to 12MP IP Camera

Quad-core CPU

320Mb Bandwidth

4K (3840x2160) HDMI Video Output

8 SATA up to 6TB each HDD

2 RJ45 10/100/1000Mbps Ethernet Interfaces

RAID 0, 1, 5, 10 Hot Swap

H.264/H.264 Zip+/H.265 Ready

Video/Audio Input
IP Video Input	64-CH Up to 12MP resolution
Two-Way Audio Input	1- ch, RCA (2.0 Vp- p, 1kΩ)
Network
Incoming Bandwidth	320Mbps or 200Mbps(When RAID is enabled)
Outgoing Bandwidth	256Mbps or 200Mbps(When RAID is enabled)
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
VGA1/HDMI1 output	HDMI1: 4K(3840×2160)/60Hz,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz,1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1 280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz; VGA1: 2K(2560×1440)/60Hz, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 ×1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA2/HDMI2 output	1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio Output	2- ch, RCA (2.0Vp-p,1kΩ)
Decoding
Decoding Format	H.265/H.264+/H.264/MPEG4
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
Synchronous Playback	16-ch
Hard Disk
SATA	8 SATA interfaces for 8HDDs
eSATA	1 eSATA Interface
Capacity	Up to 6TB capacity for each HDD
Disk Array
Array Type	RAID0, RAID1, RAID5, RAID6,RAID10
Number of array	4
Interface
Network Interface	2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial Interface	RS-232; RS-485; Keyboard;
USB Interface	2 × USB 2.0 on front panel and 1× USB 3.0 on rear panel
Alarm In/Out	16/4
General
Power Supply	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption	≤ 30 W(without hard disk)
Working Temperature	14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity	10% - 90%
Casing	19-inch rack-mounted 2U chassis
Dimension	17.5" ×18.5"×3.5"(445 × 470 ×90 mm)
Weight	≤ 22 lb (10 Kg,without hard disk)
