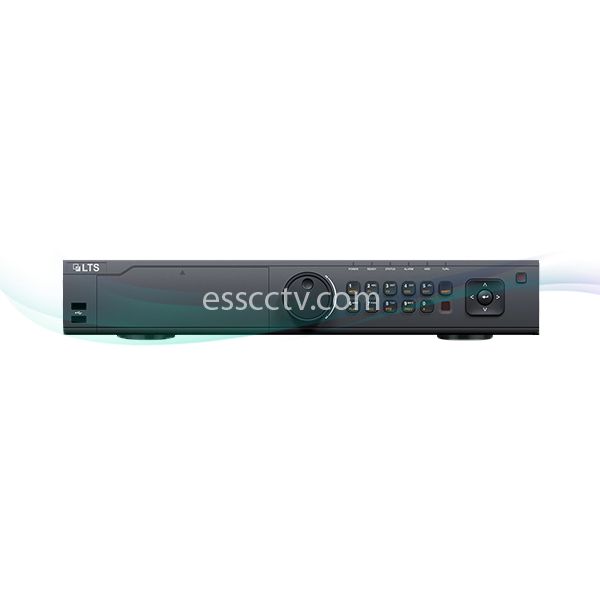

LTS LTN8816K Platinum Enterprise Level 16 Channel 4K NVR 1.5U
Images are for illustration purpose and may not show the actual product.
Model:
LTN8816K
Item #: 1305
Manufacturer: LT Security Inc
MSRP:
$600.00
Our Price:
$449.00
(You save: $151.00)
- 16 Channel Network Video Recorder
- Support Live View, Storage, Playback up to 4K(8MP) IP Camera
- 160Mb Bandwidth
- 4K (3840x2160) HDMI Video Output
- 4 SATA up to 6TB each HDD
- 2 RJ-45 10/100/1000 Mbps Ethernet Interfaces
- H.264/H.264 Zip+
| Video/Audio Input |
| IP Video Input |
16-CH |
| Two-Way Audio Input |
1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network |
| Incoming Bandwidth |
160Mbps |
| Outgoing Bandwidth |
160Mbps |
| Remote Connection |
128 |
| Video/Audio Output |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output |
4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output |
1- ch, RCA (Linear, 1kΩ) |
| Decoding |
| Decoding Format |
H.265/H.264+/H.264/MPEG4 |
| Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback |
16-ch |
| Capability |
2-ch @ 4K, or 8-ch @1080p |
| Hard Disk |
| SATA |
4 SATA Interfaces for 4 HDDs |
| Capacity |
Up to 6TB for Each Disk |
| External Interface |
| Network Interface |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Serial Interface |
1 RS-485 (half-duplex), 1 RS-232, 1 keyboard(optional) |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out |
16/4 |
| General |
| Power Supply |
100~240V AC |
| Consumption |
≤20W |
| Working Temperature |
+14ºF ~ +131 ºF(-10ºC ~ +55ºC) |
| Working Humidity |
10% - 90% |
| Casing |
19-Inch Rack-Mounted 1.5U chassis |
| Dimension |
17.5"× 15.3" × 2.8"(445 × 390 ×70 mm) |
| Weight |
≤11lb (5Kg) |
