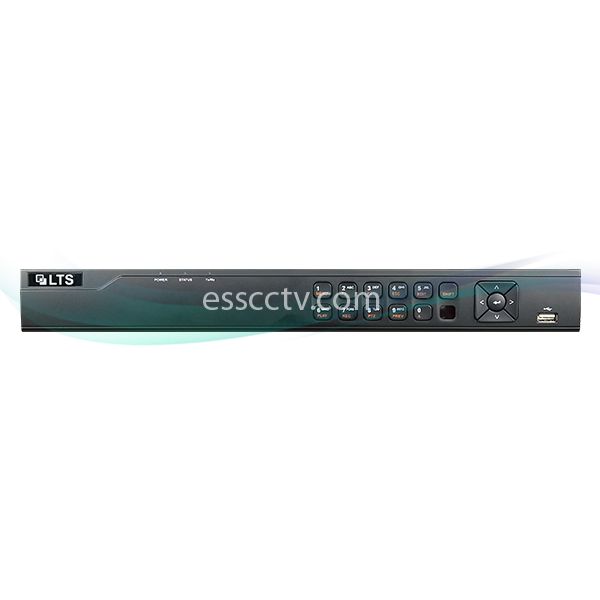

LTS LTN8716K-P16 Platinum Professional Plus Level 16 Channel 4K NVR 1U
Images are for illustration purpose and may not show the actual product.
Model:
LTN8716K-P16
Item #: 1302
Manufacturer: LT Security Inc
MSRP:
$800.00
Our Price:
$599.00
(You save: $201.00)
- 16 Channel Network Video Recorder
- Support Live View, Storage, Playback up to 4K(8MP) IP Camera
- 160MB Bandwidth
- 16 Built-in PoE
- 4K (3840x2160) HDMI Video Output
- 2 SATA up to 6TB each HDD
- H.264/H.264 Zip+
| Video/Audio Input |
| IP Video Input |
16-CH |
| Two-Way Audio Input |
1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network |
| Incoming Bandwidth |
160Mbps |
| Outgoing Bandwidth |
160Mbps |
| Remote Connection |
128 |
| Video/Audio Output |
| Recording Resolution |
8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output |
4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output |
1-CH, RCA (Linear, 1kΩ) |
| Decoding |
| Decoding Format |
H.265/H.264/H.264+/MPEG4 |
| Recording Resolution |
8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback |
16 -ch |
| Capability |
2-ch @ 4K, or 8-ch @1080p |
| Hard Disk |
| SATA |
2 SATA Interfaces for 2 HDDs |
| Capacity |
Up to 6TB for Each Disk |
| External Interface |
| Network Interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| U |
TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™ , HTTPS |
| USB Interface |
1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In/Out |
4/1 |
| PoE |
| Interface |
16RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Max. Power |
≤200W |
| Supported Standard |
IEEE 802.3 af/at |
| General |
| Power Supply |
100~240V AC |
| Consumption |
≤ 15W |
| Working Temperature |
14°F - 131°F(-10 °C ~ +55 °C) |
| Working Humidity |
10% - 90% |
| Casing |
15-inch rack-mounted 1U chassis |
| Dimension |
381 × 290 × 45mm (15 ×11.4 × 1.8 inch) |
| Weight |
≤ 1 kg (2.2 lb) |
