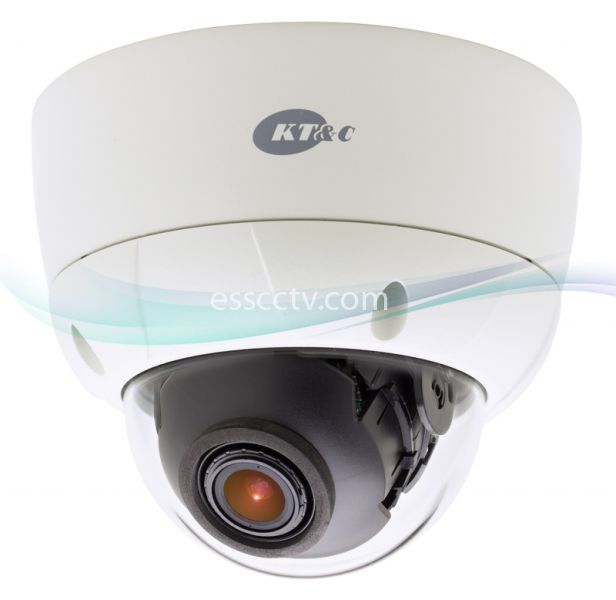

KT&C KPC-VDNS102NUV 750 TVL, 3-Axis, 2.8-12mm, IP66, Dual Voltage, Rugged Outdoor Dome

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KPC-VDNS102NUV
Item #: 1265
Manufacturer: KT&C USA

MSRP: $180.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Superlative resolution of over 750 horizontal TV lines for amazing image quality

960H CCD sensor with high IR sensitivity in low light without DSS boost

Full motion color or digital day/night during low ambient light without ghosting

Simple and easy to use OSD setup menu
- Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scenelighting conditions
- Anti Color Roll for proper white balance independent of fluorescent or other types ofillumination
- Programmable Back Light Compensation (BLC) and Highlight Compensation (HLC)
- Adjustable 2D-Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery

2.8~12mm 2 Megapixel Aspheric Varifocal DC iris lens to capture the desired field of view

Dual voltage (12VDC/24VAC) with Anti Color Roll

IP66 weather resistant

Extreme Operating temperature down to -40 degrees

Service Video output for convenient installation, and ease of service

3-Axis gimbal for convenient wall or ceiling mounting

Flush or Surface mountable (surface mounting/splice box fits standard ¾” conduit and electrical boxes)

Imaging Device	1/3" 960H High Sensitivity CCD
Video Format	NTSC
Picture Elements	NTSC: 1020(H)x508(V)
Effective Picture Elements	NTSC: 976(H) x 494(V)
Horizontal Resolution	More than 750 TVL
Sensitivity	.01 lux native from sensor – no ghosting With lens: .1 lux
S/N Ratio	Over 50dB (AGC off)
Video Output	BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied
Gamma Correction	0.45
Lens Type	2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6
Lens Positioning	3-axis flexible positioning for wall or ceiling mounting
Back Light Compensation	OFF/BLC/HLC Selectable
Auto Gain Control	Off/Low/Middle/High
Electronic Shutter	Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000
White Balance	ATW/AWB/AWC->SET/Anti-Color Roll/Manual
Sync. Mode	Internal (plus Anti-Color Roll White Balance option above)
Day & Night	Digital D/N control; Choose Auto, Color or B/W
OSD Menu	Multiple functions using 3-axis joystick
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
2D-DNR	On/Off (Level Adjustable)
Digital Wide Dynamic Range	On/Off (Level Adjustable)
Mirror	Off/On
Motion Detection	Off/On for 4 selectable zones (On screen indication)
Privacy Mask	Off/On for 8 selectable zones
Lens Shading Correction	Off/On with adjustable level and center
Other OSD Functions	Camera Title with position, Font Color, Image Contrast/Sharpness, CRT/LCD display optimization, Negative Image, DPC (Dead Pixel Compensation)
Power Source	12VDC/24VAC
Power Consumption	12VDC:160mA max. / 24VAC:1.8W max.
Operating Temperature	-40°F~140°F ; -40°C~60°C
Environmental	IP66 weather resistant
Mechanical	Vandal proof dome; back box accepts ¾” conduit fittings and hole pattern matches various standard electrical boxes; remove back box for flush mounting
Dimensions	Surface: 6.14”/156mm dia. x 5.1”/129.5mm high Flush: 5.63”/143mm dia. X 3.11”/79mm visible & .98”/25mm behind surface
Weight	1.2 pounds flush mounted; 2.8 pounds with surface mount conduit compatible back box
Certifications	CE / FCC RoHS
Environmental	IP66 weather resistant
