> Item #1261

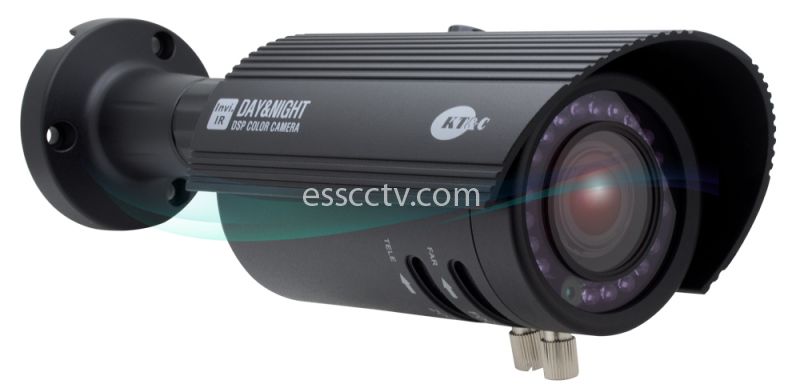

KT&C KPC-N501NUB Camera - Outdoor - 750 TVL Invisible IR True Day & Night, Dual Voltage, IP66

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KPC-N501NUB
Item #: 1261
Manufacturer: KT&C USA

MSRP: $240.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Superlative resolution of over 750 horizontal TV lines for amazing image quality

EXview HAD 960H CCD IIfor high sensor IR sensitivity

Varifocal 2.8~12 mm DC iris lens to capture the desired field of view

True Day/Night zero light operating range of 80 feet or more from 20 Invisible IR LEDs (depending on scene reflectivity)

“Invisible” (940 nm) IR LEDs cannot be seen by the human eye

Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion

Simple and easy to use OSD setup menu

Dual voltage (12V DC/24V AC) with Anti Color Roll

IP66 (Weather Resistant)

Extreme Operating temperature down to -40 degrees

External lens adjustment and service Video output for convenient installation, and ease of service

3-axis bracket conceals and protects cable

Available in a Black Housing Only

Model
KPC-N501NUB	2.8~12 mm VF, Black

Model	N501NU
Imaging Device	1/3" Sony Exview HAD II 960H High Sensitivity Interline CCD
Video Format	NTSC
Picture Elements	1020 (H) x 508 (V)
Effective Picture Elements	976 (H) x 494 (V)
Horizontal Resolution	More than 750 TVL
Sensitivity	0 lux with Invisible* IR on 0.0001 lux native from sensor – no ghosting
Invisible* IR LEDs	20 LEDs with output at 940 nm *IR illuminators operating at 940nm cannot be seen by the human eye.
Invisible* IR Range	82 feet or more (depending on scene Invisible IR reflectivity)
Invisible* IR Switch Points	On at ~1 lux; Off at ~3 lux
S/N Ratio	Over 50dB (AGC off)
Video Output	BNC 1.0V p-p 75 Ω; video test point inside dome, cable supplied
Gamma Correction	Gamma 0.45 nominal; adjustable brightness, contrast, saturation, hue and gain
Lens Type	Varifocal 2.8~12 mm Megapixel DC Iris Type
Positioning	Flexible positioning for wall or ceiling mounting
Back Light Compensation	OFF / BLC / HSBLC Selectable
Auto Gain Control	Low light auto, Bright light auto, Manual selectable
Electronic Shutter	1/60 ~1/100,000 sec.
White Balance	ATW / One Push / User1 / User2 / Anti-Color Roll / Manual / Push Lock
Sync. Mode	Internal (plus Anti-Chroma Crawl White Balance option above)
Day & Night	True D/N with motorized Invisible IR cut filter; Choose Color, B/W, Auto
OSD Menu	Multiple functions
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
2D-DNR	On/Off (level adjustable)
Adaptive Tone Curve Reproduction/ Electronic WDR (ATR)	On/Off (3 levels each adjustable for luminance and contrast)
Mirror	Off/On
Motion Detection	Off/On for 4 selectable zones (On screen indication on alarm)
Privacy Mask	Off/On for 4 selectable zones
Power Source	12V DC / 24V AC
Power Consumption	12V DC: max. 360mA / 24V AC: max. 4.9W
Operating Temperature	-40 °F ~ 122 °F (-40 °C ~ 50 °C)
Storage Temperature	-4 °F ~ 140 °F (-20 °C ~ 60 °C)
Environmental	IP66 (Weather Resistant)
Mechanical	Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point
Dimensions	Body alone (across sunshield): 3.23” diameter/5.12” long ; 8.72” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high
Weight	1.55 lbs (0.7 kg)
Certifications	CE / FCC / ROHS
Warranty	5 years
