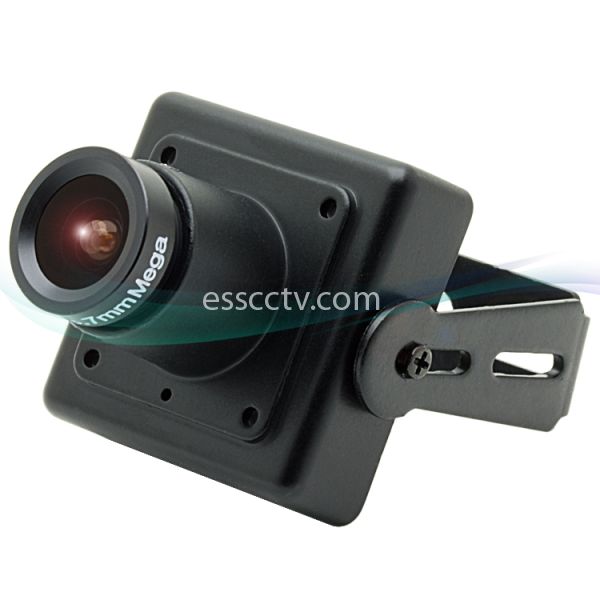

KT&C KPC-HD30M Mini HD-SDI Camera 1080p Board Lens 3.6mm

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KPC-HD30M
Item #: 1257
Manufacturer: KT&C USA

MSRP: $220.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Ultra compact size 1.2” square 2.1 megapixel HD-SDI camera weighs only 1-1/4 ounce fits anywhere

HD-SDI/HDCCTV Megapixel real time 1920x1080 or 1280x720 HD video over coax for superlative image detail

Supports video outputs of 1080p30/25; 720p60/50 (field select)

Sens-Up of up to 32X DSS boosts low light performance (use of DSS values greater than 4X should only be used after careful consideration of application conditions)

“Double Shutter” Wide Dynamic Range plus Adaptive Contrast Enhancement (ACE/DWDR) functions handle bright and unbalanced lighting conditions

HSBLC & BLC to handle backlight and highlight specific conditions

3D DNR improves picture clarity while enabling DVRs to improve disk storage utilization

Included bracket allows flexible mounting and aiming

3.7mm megapixel lens captures the desired field of view

Multi-language OSD setup menu with multiple functions (image flip, privacy mask, digital zoom, defog, camera title, motion detect, etc.)

SD/analog TV Out for setup, aim and focus using a standard hand held test monitor

Power Source only 120mA from 12VDC

Pickup Device	1/3” 2.1 Megapixel Color CMOS sensor
Total Pixels	1944 x 1092
Effective Pixels	5.28 mm x 2.97 mm (16:9 aspect ratio; 6.06 mm diagonal
Sensitivity	0.1lux/F=1.8; 0.2lux/F=2.5. Use of DSS can improve practical light sensitivity by 4X or more; ; use of DSS values greater than 4X should only be used after careful consideration of application conditions
S/N Ratio	More than 52dB
Video Format Main Output	HD-SDI
Resolution Main Output	Field select 1080p or 720p
Video Mode Main Output	Field select 1080p 30/25; 720p 60/50
Main Output Connector	BNC-F
Video Format Service Video Output	NTSC/PAL selectable
Service Video Output Connector	BNC-F
Electronic Shutter	Auto/Manual selectable 1/30(20); 1/60(50); 1/120(100); 1/250; 1/700; 1/1.1K; 1/1.6K; 1/2.5K; 1/5K; 1/7K; 1/10K; 1/30K
Lens Choices (megapixel board type)	f=3.7mm/F2.5 (3M) / f=8mm/F1.8 (1.3M) Super-cone Pinhole f=4.3mm/F2.0 (1.3M)
Day/Night Control	Digital D&N (Auto/Color/B&W)
Wide Dynamic Range / Back Light Compensation	Off/BLC/WDR [WDR adjustable for level; BLC adjustable for area] (WDR option employs “Double Shutter” Wide Dynamic Range Compensation)
Digital Wide Dynamic Range	Adaptive Contrast Enhancement (ACE)
Auto Gain Control	Yes (12~60 dB)
Auto White Balance	Auto/Auto Ext/Push Lock/Manual
DNR	3D DNR; Off/Low/Mid/High selectable
OSD Menu	Yes (controlled from 3-axis joystick control)
OSD Language	English, Russian, Spanish, German, French, Portuguese, Chinese
Image Flip	Off/H Flip/V Flip/HV Flip (rotate 180°)
Privacy Zones	Up to 15 zones, with adjustable color and transparency
HSBLC	Adjustable for level, mode (day/night/all), and mask color
Digital Zoom	Up to 20X
Defog	Image clarity improvement in diffued light environments low/middle/high
Power Sources & Consumption	12V DC: 120mA max.
Dimensions	1.18 inch x 1.18 inch x 1.11 inch (30 mm x 30 mm x 28.2 mm)
Weight	1.23 oz. (35 g)
Operating Temperature	-10 °C ~ 50 °C ; 14 °F ~ 122 °F
Storage Temperature	-20 °C ~ 60 °C ; -4 °F ~ 140 °F
Humidity	20% ~ 80%, non condensing
Mounting Provision	Tilt/Swivel bracket provided
Certifications	FCC, CE
