> Item #1192

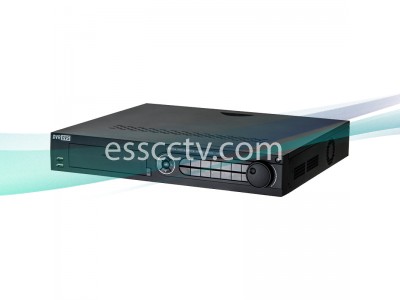

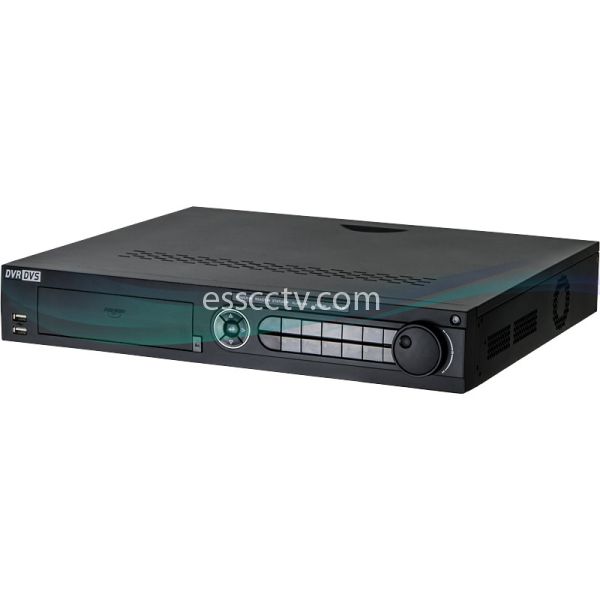

HD-TVI DVR system, 32ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for HD-TVI DVR system, 32ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: TVST PHD-32T

Additional Image for HD-TVI DVR system, 32ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App:

Additional Image for HD-TVI DVR system, 32ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: Back Panel

Additional Image for HD-TVI DVR system, 32ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: Accessory

Model: TVST PHD-32T
Item #: 1192

MSRP: ~~$1,500.00~~
Our Price:

$849.00

(You save: $651.00)

KEY FEATURES

Connectible to TVI and analog cameras

Connectible to the Coaxitron camera/dome with long transmission distance

Connectible to network cameras

Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution

New GUI and supports starting record with one key

Redundant recording, holiday recording schedule configuration

Instant playback for assigned camera during multi-channel live view mode

Support up to 32 -ch synchronous playback; and reverse playback for multi-channel

Smart playback to go through less effective information

Manual video quality diagnostics

Support VCA alarm (line crossing detection and intrusion detection)

Customization of tags, searching and playing back by tags

Locking and unlocking record files

Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode

Provide 4 SATA interfaces and 1 eSATA interface for record and backup

1 self-adaptive 10M/100M/1000M network interface

Support access by EZVIZ Cloud P2P

Support DDNS (Dynamic Domain Name System)

Network detection function.

iPhone® Android® App Available (Guarding Expert)

Video/Audio Input
Video Compression	H.264
Analog & HD-TVI Video Input	32Ch / BNC Interface (1.0Vp-p, 75Ω)
Supported Camera Types	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
IP Video Input	8Ch (up to 32Ch) / Up to 2MP Resolution
Audio Compression	G.711u
Audio Input/Two-way Audio In	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio in	1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz
Encoding Resolution	Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video Bitrate	32 Kbps-6 Mbps
Audio Output	1-ch, RCA (Linear, 1KΩ)
Audio Bitrate	64 Kbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	32Ch
Playback Resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA	4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity	Up to 4 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial Interface	RS-232, RS-485, Keyboard
USB Port	3 x USB 2.0
Alarm in/out	16/4
General
Power Supply	100 ~ 240VAC, 47 ~ 63HZ
Consumption (without hard disks)	≤ 65W
Working Temperature	-10 °C ~+55 °C (14 °F ~ 131 °F)
Working Humidity	10%~90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimensions (W x D x H)	445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight (without hard disks)	≤ 5Kg (11.1lb)
