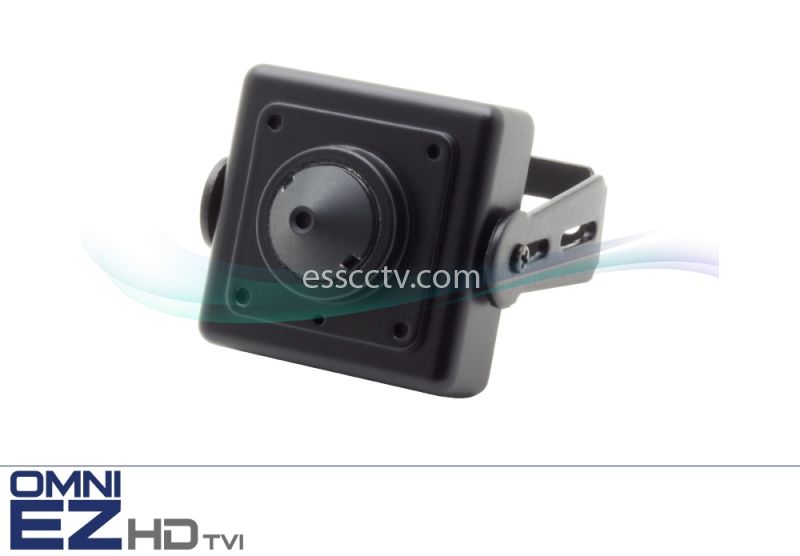

1080p HD-TVI Pinhole Metal Case Camera
| Image Device | 1/2.7” PROGRESSIVE SCAN CMOS |
| Effective Pixels | 1930 (H) x 1088 (V) |
| Unit cell size | 3.0um (H) x 3.0um (V) |
| Video output mode | HD-TVI : 1080P 30fps(25fps) |
| Transmission Distance | HD-TVI : Color 300m@RG59 , BW 500m@RG59 |
| Menu Access | Up the Cable control |
| Shutter speed | Auto, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/3000, 1/10000 |
| BLC | BLC (1~16 selectable) |
| HLC | Adjustable area, 0~255 for mask and threshold values |
| AGC | 1~5 (Max. 30dB) |
| Flickerless | Off, 50Hz, 60Hz |
| 2DNR | AUTO |
| White Balance | AUTO indoor / AUTO Outdoor / USER / PUSH / Manual |
| Lens | Board type 3.7mm / Pinhole type 4.3mm |
| Day&Night | Auto, color, B/W |
| Privacy Zones | Two, with adjustable size and position |
| Image Control | Flip, Mirror, Gain, Hue, Sharpness, Contrast |
| Temperature/Humidity (non condensing) | Operation : 5°F~122°F(-15°C~50°C) Storage : -4°F~140°F(-20°C~60°C) Humidity less than 80% |
| Power Consumption | DC12V ±10% Max.100mA |
| External Control | UTC (Up The Cable OSD Menu Control) |
| Dimension | Body 1.18” x 1.18” (30mm x 30mm) Depth: w/board lens 1.15” (29.3mm) w/pinhole .74“ (18.8mm) |
| Mounting Bracket | 2-axis bracket included; adds .05”~.4” to height, .05”~.9” to depth |
| Video and Power Cable | Detachable; >23” long (58.5cm) |
| Weight | Approx. 30g / 1 oz. plus cable |
