> Item #1124

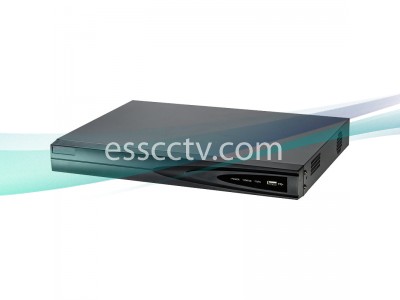

HD-TVI DVR system, 16ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

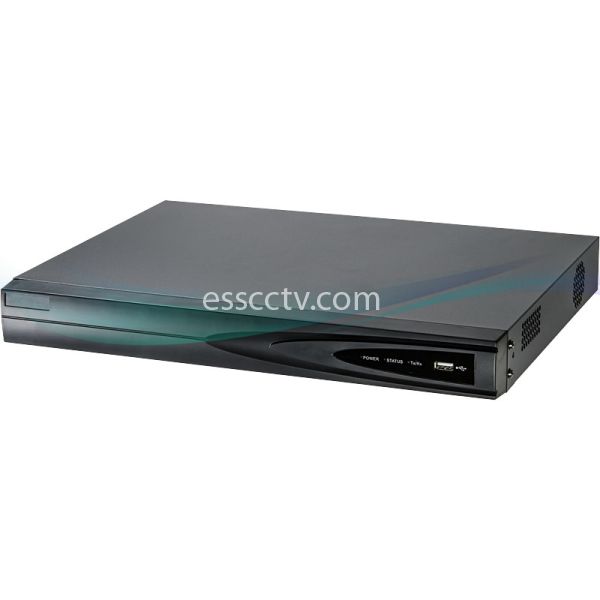

Additional Image for HD-TVI DVR system, 16ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: TVST PHD-16T

Additional Image for HD-TVI DVR system, 16ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App:

Additional Image for HD-TVI DVR system, 16ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: Back Panel

Additional Image for HD-TVI DVR system, 16ch 1080p/720p record, works with Analog and HD-TVI, iPhone Android App: Accessory

Model: TVST PHD-16T
Item #: 1124

MSRP: ~~$600.00~~
Our Price:

$295.00

(You save: $305.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: TVST STI716

KEY FEATURES

H.264 & Dual-Stream Video Compression

Support HD-TVI/Analog/IP Camera Triple Hybrid

Support both HD-TVI & Analog cameras with adaptive access

Full Channel@720P Resolution Real-Time Recording

HDMI & VGA Output at up to 1920×1080P Resolution

Long transmission distance over coax cable

Support up to 16Ch Synchronous Playback at 1080P Resolution

iPhone® Android® App Available (Guarding Expert)

Video/Audio Input
Video Compression	H.264
Analog & HD-TVI Video Input	16Ch / BNC Interface (1.0Vp-p, 75Ω)
Supported Camera Types	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio Compression	G.711u
Audio Input/Two-way Audio In	1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz
Encoding Resolution	Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video Bitrate	32 Kbps-6 Mbps
Audio Output	1-ch, RCA (Linear, 1KΩ)
Audio Bitrate	64 Kbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	16Ch
Playback Resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA	2 SATA Interfaces
Capacity	Up to 4 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial Interface	1; standard RS-485 serial interface, half-duplex
USB Port	2 x USB 2.0
General
Power Supply	12V DC
Consumption (without hard disks)	≤ 20W
Working Temperature	-10 °C ~+55 °C (14 °F ~ 131 °F)
Working Humidity	10%~90%
Chassis	380mm 1U chassis
Dimensions (W x D x H)	380 × 290 × 48mm (15.0 × 11.4 × 1.9 inch)
Weight (without hard disks)	≤ 2Kg (4.4lb)
