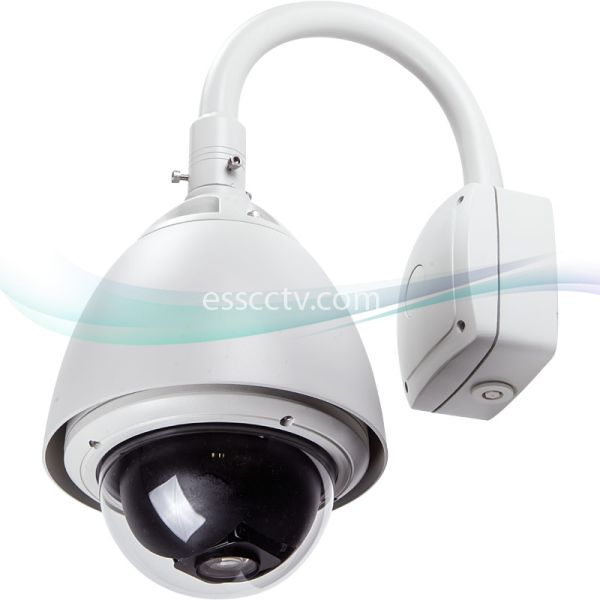

* SOLD OUT * All-in-One Analog HD PTZ camera, 2MP 1080p Outdoor Speed Dome, 30x Optical Zoom, HD-TVI/AHD/HD-CVI
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
ATC-PT-B2730
Item #: 1105
MSRP:
$1,200.00
Our Price:
$795.00
(You save: $405.00)
- All-in-One: HD-TVI / A-HD / HD-CVI output support
- 1/3" Sensor
- 2MP (HD 1080P)
- 30x Optical Zoom f=4.7~129mm
- Pelco D/P Protocol
- High speed 400° rotation
- Heater & Blower
- Outdoor IP66 case
- Analog Service Video Output
- Dual Voltage - DC12V or AC24V required
- Ceiling or Wall mount
| Image Sensor |
1/3” Panasonic CMOS Sensor |
| Video Out |
1080p ( A-HD / HD-TVI / HD-CVI ) |
| Zoom |
30 × Optical Zoom |
| Focal Length |
30 ×: F1.6~3.7 , f=4.3~129mm |
| Minimum Illumination |
Color: 0.5Lux, BW: 0.1Lux; Color DSS: 0.002Lux, BW DSS: 0.001Lux |
| Day & Night |
Active/Passive/Day/Night/Schedule |
| Focus |
Auto |
| Iris |
0---20 |
| Shutter Speed |
1/30(25)---1/60000sec. |
| AGC |
Off/On |
| White Balance |
Auto |
| Mirror |
None/Horizontal/Vertical/Horizontal & Vertical |
| WDR |
High/Low/Disable |
| Pan/Tilt Range |
Pan: 360° Endless, Tilt: 180° |
| Speed |
Max. 400 degrees/sec. |
| Preset |
254 |
| Tour |
8 |
| Auto Scan |
8 |
| Pattern |
4 |
| Group |
8 |
| Schedule |
16 |
| Other PTZ Functions |
Auto Flip, Parking Action, Power up Action |
| Protocol |
Pelco D/P |
| Alarm In |
8CH |
| Alarm Out |
4CH |
| Dome Dimension |
ø230mm x 325Hmm |
| Working Temperature |
-42°C~+55°C |
| Working Humidity |
90% |
| Fan |
Start temp: 45° and 0° |
| Heater |
0° |
| Power Supply |
AC24V / DC12V (+/-10%) |
| Extra Video Out |
Analog Output |
| Power Consumption |
DC12V (26W), AC24V (65W) |
| Waterproof |
IP66 |
| Certificate |
CE, FCC |
