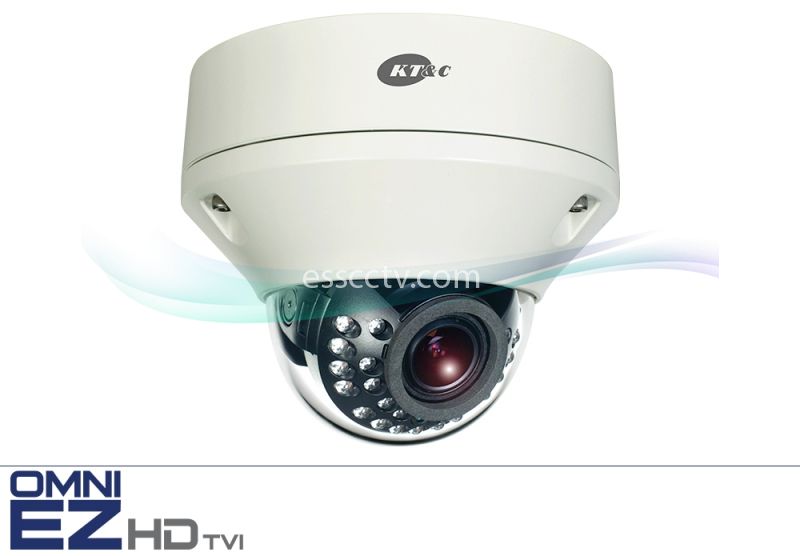

KT&C KEZ-c2DR28V12IR OMNI EZ HD-TVI Camera 1080p Outdoor Vandal Dome IR, 2.8-12mm, Dual Power

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KEZ-c2DR28V12IR
Item #: 1089
Manufacturer: KT&C USA

MSRP: $300.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

1080p HD-TVI Outdoor Dome with IR

Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and
- useful digital zoom on live view and playback
- Field select 1080p or 720p
- Field select 30/25 Hz or 60/50 Hz

Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).

HD-TVI HD BNC main output

CVBS analog service video output inside housing
- Use standard hand held test monitors
- Convenient aim and focus; ease of service

1/3” Sony progressive scan CMOS sensor with .5 lux native light sensitivity

Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view

True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 24 IR LEDs

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Digital slow shutter (Sens-Up) low light enhancement (More than 2~4X enhancement should be limited to select applications.)
- Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details

Image H/V flip and rotate, digital zoom and more

Dual voltage 24VAC/12VDC operation with low current draw

IP68water proof, vandal proof construction

Operating temperature range of -40°F~140°F

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

- Optional KA-RCMP1 for mounting to standard electrical boxes
- Optional KA-RCWM1 wall mounting arm

Imaging Device	1/3" Sony 2.1Mp Progressive Scan CMOS
Video Format	Main Output	1080p30/25, 720p60/50 HD-TVI (OSD selectable)
	Secondary Output	CVBS (OSD selectable NTSC/PAL) service video test point
Picture Elements	1984 (H) x 1105 (V)
Effective Picture Elements	1920 (H) x 1080 (V)
Horizontal Resolution	More than 1080 HTVL (in 1080p mode)
Sensitivity	0 lux IR on; .5 lux @ F1.6 (AGC On)
Day/Night Type	True Day/Night with ICR motorized filter control
Lens Type	2 Megapixel Varifocal Type 2.8~12mm F=1.6 IR corrected
IR LED	24 Smart IR LEDs, 850nm
IR Range*	66’ / 20m (*As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination)
Smart IR Exposure Adjust	Active when IR enabled: Off/Low/Mid/High
Video Output Connector Type	TVI and CVBS		BNC 75Ω
	Test Video		CVBS video test point inside access cover, cable to BNC supplied
Sync. Mode	Internal
OSD Menu	Multiple functions using 3-axis joystick inside housing; UTC Control
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control	Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
DWDR / BLC / HSBLC	OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control	OFF; 2~42dB
Electronic Shutter	Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance	Auto / Push Lock / Manual
Color Correction	Gamma 0.45~.65, adjustable
Day & Night	Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control
Sens-Up	DSS low light boost Off/Auto 2X~16X* *DSS levels above 4X should be used only after careful consideration of scene dynamics
3D-DNR	Off/Low/Mid/High
Digital Zoom	1X~8X
Defog	Off/Low/Mid/High
Mirror	Off / H-flip, V-flip, rotate
Motion Detection	Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask	Off/On with full programmability for 8 selectable zones
Lens Shading Compensation)	Off/Low/Mid/High
DPC (Defective Pixel Correction)	Off/On
Other OSD Functions	Camera Title with position, Font Color; Image Sharpness
Power Source	12VDC/24VAC
Power Consumption	12VDC: 350mA, 24VAC: 4W (IR LED On)
Operating Temperature	-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Environmental	IP68 water proof
Mechanical	Vandal proof metal construction
Positioning	3-axis flexible positioning for wall or ceiling mounting
Dimensions	Ø5.24” × 4.4” [Ø133 × 111.8mm]
Weight	1.63 lbs./.74 Kg
Mounting Options	Electrical box adapter: KA-RCMP1; Wall mount arm: KA-RCWM1
Certifications	CE / FCC / RoHS
