> Item #1086

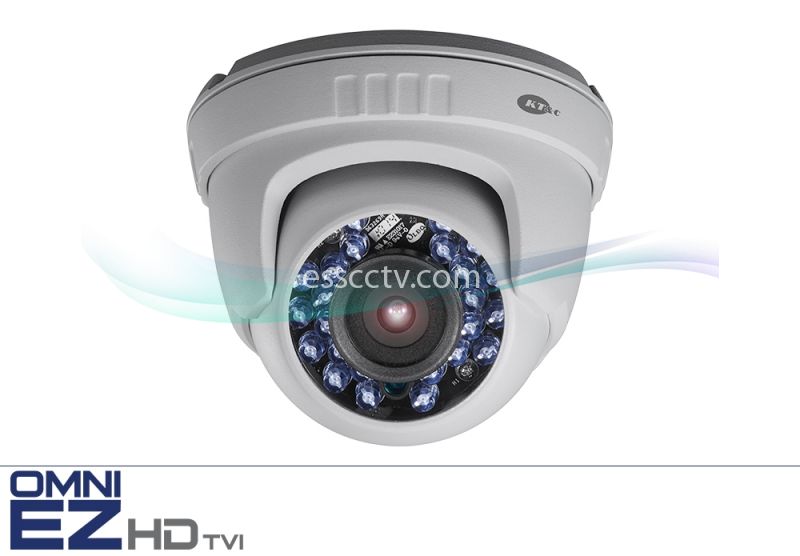

KT&C KEZ-b1TR3IR OMNI EZ HD-TVI Camera 720p Outdoor Mini Turret Dome, 24 IR LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KEZ-b1TR3IR
Item #: 1086
Manufacturer: KT&C USA

MSRP: $80.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

This Model has been discontinued.
Please follow the link for our recommended replacement: KEZ-c2TR4IR

720p HD-TVI Mini Turret

HD resolution of 720p30 for amazing image quality and useful digital zoom

Twice the detail (pixels) compared with 960H/WD1 analog, and 2.7X the detail of traditional analog

Operation over ‘almost any’ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/3” progressive scan CMOS sensor with .01 lux native light sensitivity

True Day/Night zero light operating range of 66 feetor more from 24 IR LEDs

Smart IR automatic exposure level adjust to deliver properly exposed images despite reflections and bright spots

Digital Noise Reduction for low light image clarity and conservation of HDD space

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

12VDC operation with low current draw

IP66 weather resistant construction

Metal camera ball; easy to mount plastic base

Extreme operating temperature range of -40°F~140°F

Compact size for unobtrusive surveillance

Imaging Device	1/3" Progressive Scan CMOS
Video Format	720p30 HD-TVI
Picture Elements	1280 (H) x 720 (V)
Horizontal Resolution	More than 1,000 HTVL
Sensitivity	0 lux IR LED on; .01 lux @ F1.2 (AGC On)
Lens Type	Fixed focal length 3.6mm nominal; optional 2.8mm
Angle of view	76.9° (3.6mm); 99.7° (2.8mm)
IR LED	24 LEDs, 850nm
IR Range†	66’
Smart IR Exposure Adjust	Internally controlled; active when IR enabled
Day & Night	Auto True D/N with motorized ICR, controlled by photo sensor
S/N Ratio	Over 52dB (NR On)
Sync. Mode	Internal
Auto Gain Control	0~15
Electronic Shutter	Auto: 1/30 ~ 1/50,000 second
White Balance	AWB
Color Correction	Nominal Gamma 0.45
2D-DNR	On
Video Output Connector Type	BNC 75Ω
Power Source	12VDC
Power Consumption	12VDC: 333mA IR LED On
Operating Temperature	-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Environmental	IP66 weather resistant
Mechanical	Metal ball, plastic base construction
Positioning	3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~90° Rotate: 0~360°
Dimensions	Ø3.52” × 2.75” [Ø89.5 x 69.8mm]
Weight	.57 lbs./260g
Certifications	CE / FCC / RoHS
