> Item #1083

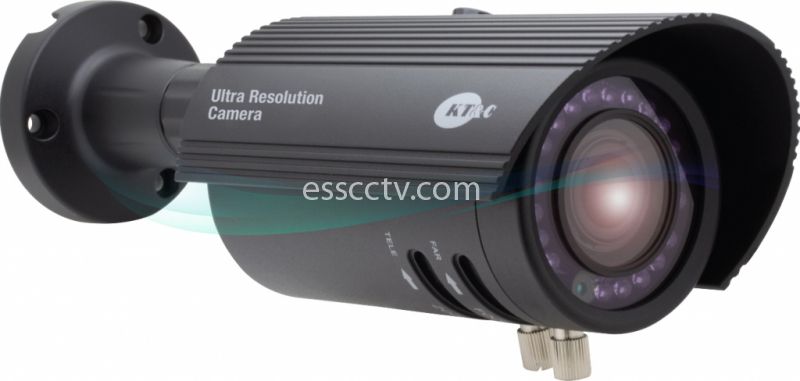

KT&C KPC-IRBULLET30 Outdoor Bullet IR Camera, 960H 750 TVL, True Day/Night, 20 LED, 2.8-12mm

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KPC-IRBULLET30 Outdoor Bullet IR Camera, 960H 750 TVL, True Day/Night, 20 LED, 2.8-12mm: KPC-IRBULLET30

Additional Image for KT&C KPC-IRBULLET30 Outdoor Bullet IR Camera, 960H 750 TVL, True Day/Night, 20 LED, 2.8-12mm: White case

Model: KPC-IRBULLET30
Item #: 1083
Manufacturer: KT&C USA

MSRP: $230.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Outdoor True Day/Night, 750 TVL Bullet with IR

Superlative resolution of over 750 horizontal TV lines for amazing image quality

960H CCD II for high sensor IR sensitivity

Varifocal 2.8~12mm DC iris lens to capture the desired field of view

True Day/Night zero light operating range of 80 feet or more from 20 IR LEDs*

Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion

Simple and easy to use OSD setup menu
- Adaptive Tone Curve Reproduction (ATR)/Electronic Wide Dynamic Range to properly expose images during unbalanced light contrast in the scene
- Anti Color Roll white balance option resists fluorescent light interference
- Optional Back Light Compensation (BLC) and Highlight Compensation (HLC)
- Adjustable 2D-Noise Reduction to increase picture clarity and improve utilization of DVR disk storage
- Privacy image masking for 4 configurable zones

Dual voltage (12VDC/24VAC) with Anti Color Roll

IP66 weather resistant

External lens adjustment and service Video output for convenient installation, and ease of service

Extreme Operating temperature down to -40 degrees

3-axis bracket conceals and protects cable

Imaging Device	1/3" 960H High Sensitivity CCD
Video Format	NTSC –or- PAL (separate models)
Picture Elements	NTSC: 1020(H)x508(V) PAL:1020(H)x596(V)
Effective Picture Elements	NTSC: 976(H) x 494(V) PAL:976(H) x 582(V)
Horizontal Resolution	More than 750 TVL
Lens Type	Varifocal 2.8~12mm Megapixel DC Iris Type
Sensitivity	0 lux with Smart IR; 0.001 lux native from sensor – no ghosting
Smart IR LEDs	20 LEDs with output at 850nm
Smart IR Range	100 feet or more (depending on scene IR reflectivity)
Smart IR Switch Points	On at ~1 lux; Off at ~3 lux
S/N Ratio	Over 50dB (AGC off)
Video Output	BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied
OSD Menu	Multiple functions
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
Picture Adjust	Gamma 0.45 nominal; adjustable brightness, contrast, saturation, hue and gain.
Day/Night	True D/N with motorized IR cut filter; Choose Color, B/W, Auto
Digital WDR	Off/On level adjustable
Back Light Compensation	OFF/On with Selectable area and level
Highlight Compensation	OFF/On with Selectable area and level
Auto Gain Control	Off/Low/Mid/High
Electronic Shutter	1/60 ~1/100,000 sec.
Gamma	0.45 nominal; adjustable for indoor/outdoor/manual color temperature and red/blue levels
White Balance	ATW/AWC Set/Anti-Color Roll/Manual
Sync. Mode	Internal (plus Anti-Chroma Crawl White Balance option above)
2D-DNR	Off/On level adjustable
Horizontal Mirror	Off/On
Motion Detection	Off/On for 4 selectable zones (On screen indication on alarm)
Privacy Mask	Off/On for 8 selectable zones
Lens Shading Compensation	Off/On with selectable level and center point
Defective Pixel Compensation	Manual, with area and threshold settings
Display Optimization	Choose CRT/LDC, with selectable color levels
Power Source	12VDC/24VAC
Power Consumption	12VDC:360mA max. / 24VAC:4.9W max.
Operating Temperature	-40°F~140°F ; -40°C~60°C
Storage Temperature	-40°F~140°F ; -40°C~60°C
Environmental	IP66 weather resistant
Positioning	Flexible positioning for wall or ceiling mounting
Mechanical	Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point
Dimensions	Body alone (across sunshield): 3.23” diameter/5.71” long ; 8.82” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high
Weight	1.98 pounds / .9 kg.
Certifications	CE / FCC / ROHS
Warranty	5 years
