> Item #1081

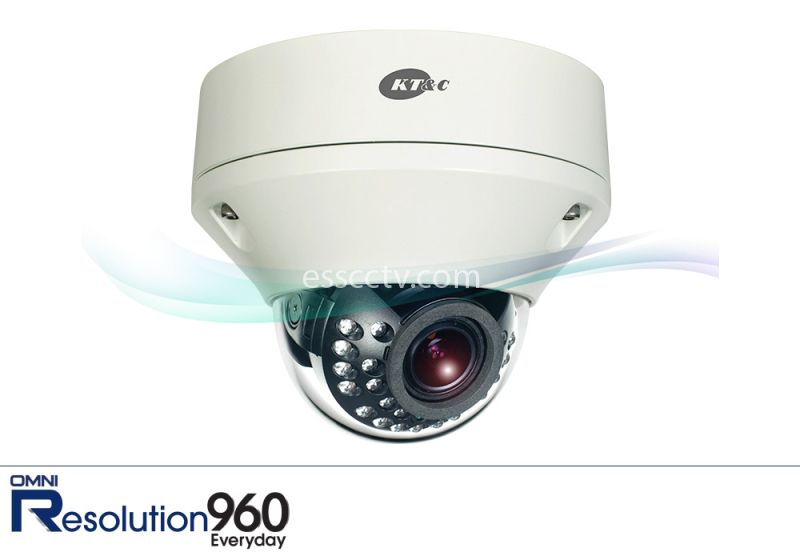

KT&C KPC-DR28V12IR Rugged Dome IR Camera, 960H 750 TVL, 2.8-12mm, IP68, True Day/Night 24 LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KPC-DR28V12IR Rugged Dome IR Camera, 960H 750 TVL, 2.8-12mm, IP68, True Day/Night 24 LED: KPC-DR28V12IR

Additional Image for KT&C KPC-DR28V12IR Rugged Dome IR Camera, 960H 750 TVL, 2.8-12mm, IP68, True Day/Night 24 LED: Diagram

Model: KPC-DR28V12IR
Item #: 1081
Manufacturer: KT&C USA

MSRP: $180.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

True Day/Night, 750 TVL, OSD, 2.8-12mm, IP68, 100' Smart IR Range, -40° F, Dual Voltage

Superlative resolution of over 750 horizontal TV lines for amazing image quality

960H CCD sensor with high IR sensitivity.

True Day/Night zero light operating range of 100 feet or more (depending on scene reflectivity) from 24 IR LEDs with Smart automatic exposure level adjust to achieve the desired IR brightness in a user defined area

3-Axis gimbal for convenient wall or ceiling mounting with integral liner to inhibit observation of camera direction

Simple and easy to use OSD setup menu
- Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scene lighting conditions
- Anti Color Roll for proper white balance independent of fluorescent or other types of illumination
- Programmable Back Light Compensation (BLC) and Highlight Compensation (HLC)
- Adjustable 2D-Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery

2.8~12mm 2 Megapixel Aspheric Varifocal DC iris lens to capture the desired field of view

Dual voltage (12VDC/24VAC) with low current draw

IP68 weatherproof construction (mounting screws sealed outside of critical electronics) with side ¾” conduit access

Extreme Operating temperature range down to -40 degrees

Service Video output for convenient installation, and ease of service

Optional KA-RCMP1 rough-in box adapter fits 1 or 2 gang or 4” octagonal/square/round boxes

Imaging Device	1/3" 960H High Sensitivity CCD
Video Format	NTSC
Picture Elements	NTSC: 1020(H)x508(V)
Effective Picture Elements	NTSC: 976(H) x 494(V)
Horizontal Resolution	More than 750 TVL
Sensitivity	0 lux IR on; .001 lux native from sensor
IR LED	24 LEDs, 850nm
IR Range*	100’ (* As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination)
Smart IR Exposure Adjust	Off/On; adjustable for gain, size and location of sensing area
S/N Ratio	Over 50dB (AGC off)
Video Output	BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied
Gamma Correction	0.45
Lens Type	2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6
Lens Positioning	3-axis flexible positioning for wall or ceiling mounting
Back Light Compensation	OFF/BLC/HLC Selectable
Auto Gain Control	Off/Low/Middle/High
Electronic Shutter	Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000
White Balance	ATW/AWB/AWC->SET/Anti-Color Roll/Manual
Sync. Mode	Internal (plus Anti-Chroma Crawl White Balance option above)
Day & Night	Auto True D/N with motorized ICR; controlled by photo sensor
OSD Menu	Multiple functions using 3-axis joystick
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
2D-DNR	On/Off (Level Adjustable)
Digital Wide Dynamic Range	On/Off (Level Adjustable)
Mirror	Off/On
Motion Detection	Off/On for 4 selectable zones (On screen indication)
Privacy Mask	Off/On for 8 selectable zones
Lens Shading Correction	Off/On with adjustable level and center
Other OSD Functions	Camera Title with position, Font Color, Image Contrast/Sharpness, CRT/LCD display optimization, Negative Image, DPC(Dead Pixel Compensation)
Power Source	12VDC/24VAC
Power Consumption	12VDC:320mA max. / 24VAC:3.8W max.
Operating Temperature	-40°F~140°F ; -40°C~60°C
Environmental	IP68 weatherproof
Mechanical	Vandal proof construction
Dimensions	5.24”(133mm) diameter., 4.4”(111.8mm) high With box adapter 5.91” (150mm) diameter x 4.72” (119.8mm) high
Weight	25.75 oz./ 1.61 lb. / 730g
Mounting Options	Side conduit fitting; Optional KA-RCMP1 rough-in box adapter fits 1 or 2 gang or 4” octagonal/square/round boxes
Certifications	CE / FCC / RoHS
