LTS proudly introduces HD-TVI technology, a breakthrough on analog solution that provides “Tribrid” compatibility to incorporate IP, analog, and high definition analog (HD-TVI) signal into one system; helping analog users to maximize their expansion needs.
No more fuzzy pictures from analog systems - LTS HD-TVI systems guarantee long distance real-time HD transmission at 720P/1080P up to 1500ft via coaxial cable; as well as UTP cable with video baluns. It is easy to upgrade an existing analog system to HD without replacing wiring—a huge saving on total cost of ownership.
With industry-leading 3-year warranty and affordable pricing, LTS provides peace of mind for users to enjoy the superior quality of HD-TVI products.
Main Features:
• Real-time HD Analog Solution at 1080P/720P
HD-TVI solution offers high definition video output at 1080P/720P with frame rate of up-to 30fps; quadruple the clarity of your traditional analog system.
• Universal HD-TVI Technology Ensures Seamless Compatibility
The universal HD-TVI technology provides seamless interoperability with any HD-TVI devices of any brand on the market; making 3rd party device integration a breeze.
• Versatile Tribrid Capability Combining Analog, IP and HD-TVI All in One System

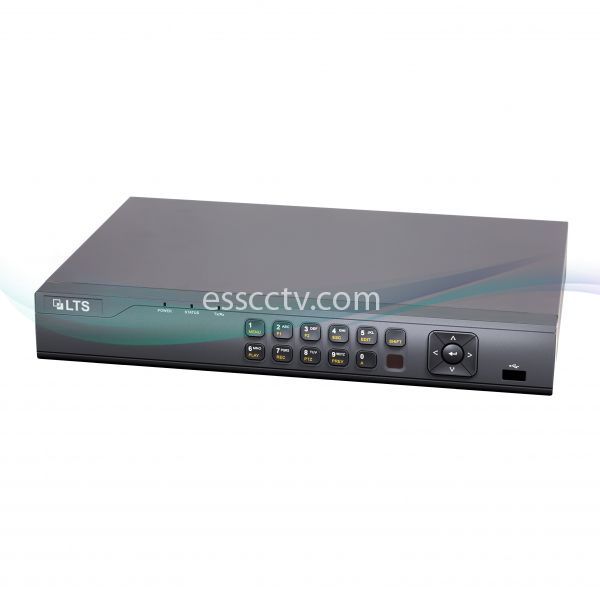

As the most versatile solution on the market, LTS HD-TVI DVRs support IP cameras, analog cameras, and HD-TVI cameras simultaneously without additional converters; helping analog users enjoy HD image quality without replacing the existing wiring.
LTS HD-TVI DVRs can auto-detect the incoming signal and configure the input for the best resolution.
• Up to 1500ft Long Distance HD Transmission via Coaxial Cable
HD-TVI guarantees long distance HD video transmission up to 1500ft at 1080P/720P using coaxial cable.
FEATURES
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 4-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input | 1ch(1080p@30fps) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI/VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video bit rate | 32 Kbps-6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connection | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 1:10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 × USB2.0 |
| General | |
| Power supply | 12V DC |
| Power Consumption | ≤ 15 W |
| Working temperature | -10 °C~+55°C(14°F ~ 131 °F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimension | 315 × 230 × 45 mm (12.4" x 9.1" x 1.8") |
| Weight | ≤ 1.5 kg (3.3 lb) |
