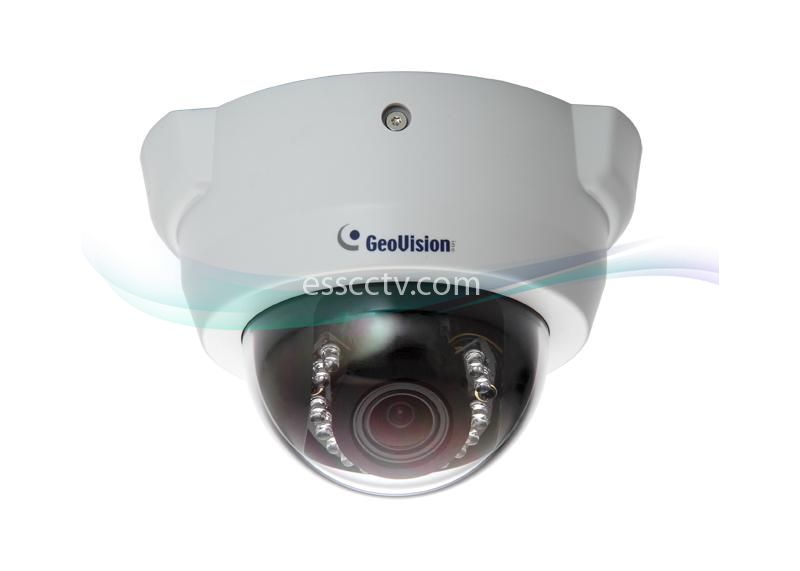

The GV-FD1500 is an indoor camera designed with 3-axis mechanism for easy and flexible installation. The camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. With optional accessories, the camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling.
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
|Image Sensor||1.3 Megapixel Progressive Scan super low lux CMOS|
|Minimum Illumination||0.01 Lux|
|Electronic Shutter Speed||Automatic , Manual (1/5 – 1/8000 sec.)|
|Day & Night||Yes (with removable IR-cut filter)|
|IR LED||10 IR LEDs up to 98 feet|
|Lens||DC Drive 3 ~ 9 mm|
|Video Compression||H.264, MJPEG|
|Audio Compression||G.711, AAC (Optional)|
|Max. Image Resolution||1280 (H) x 1024 (V)|
|Frame Rate||30 fps at 1280 x 1024|
|Networking Protocols||DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA|
|Audio||Supports two-way audio|
|Communication Interface||10/100M Ethernet|
|TV-out||BNC connector(640 x 480 resolution) for spot monitor|
|Power Supply||12V DC / 24V AC / PoE|
|Power Consumption||12 W|
|Operating Temperature||0 ~ 50 °C (32 ~ 122 °F )|
|Humidity||10% to 90% (no condensation)|
|Dimensions||6.1’’ x 4.33”|
|Warranty||2 Year Warranty|
