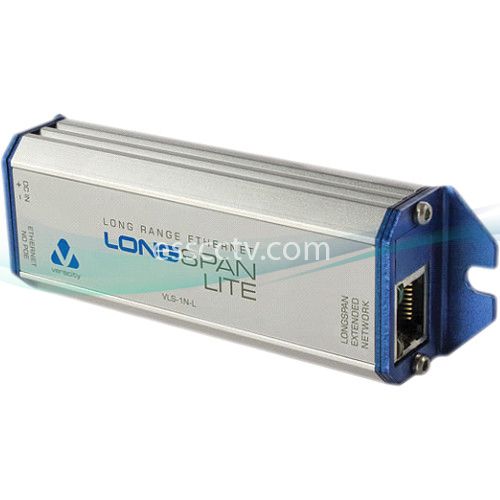

VLS-1N-L is a model with no PoE out.
The LONGSPAN model with PoE out is available here:
VCS-1P-C (camera side)
LONGSPAN delivers unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices.
As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous. LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
With an unrestricted 100Base-T full duplex connection available at a phenomenal 800 metres range, and POE-equipped models delivering full-power 802.3at POE Plus at 600 metres, LONGSPAN assures reliability in the most challenging scenarios.
LONGSPAN is available in POE and data-only models.
|Distance||Cable||Data Rate||POE Out||Power Source|
|1050 metres||Cat 6||10Base-T||5 watts||802.3af switch|
|820 metres||Cat 6||100Base-T||16 watts||802.3at switch|
|690 metres||Cat 5e||100Base-T||14 watts||802.3at switch|
|600 metres||Cat 6||100Base-T||25 watts||Veracity PSU|
|450 metres||Cat 5e||100Base-T||10 watts||802.3af switch|
|VLS-1N-L||Single LONGSPAN converter, 1 port, no POE|
|VLS-1P-B||Single LONGSPAN converter with POE in and extended POE out, for base (switch) side installation|
|VLS-1P-C||Single LONGSPAN converter with POE out and extended POE in, for camera (remote device) side installation|
|VLS-1U||1U panel for up to 24 LONGSPAN units|
