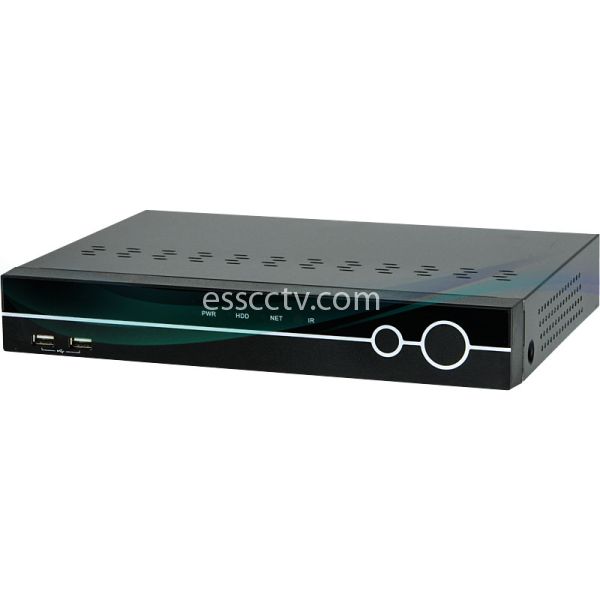

.jpg "DVST PTS960H-16")
.jpg "Front Panel")
.jpg "Back Panel")
.jpg "Accessories")
| High quality picture This enables recording and playing high quality digital image based on H.264 compression method. |
| High reliability With Embedded hardware and software design, this maintains higher product reliability. |
| Simple usage This allows users to use it conveniently by placing control buttons similar to existing ones on VCR, and users can easily learn the usage. |
| Pentaplex System Pentaplex System allows live, recording, backup, networking and playback simultaneously. |
| Selectable recording setup For recording methods, users can select the frame rate, resolution and video quality individually in order to be appropriate for user's environment. |
| Remote monitoring With using exclusive line or Internet network, you can search or monitor recorded images remotely by installing exclusive client program on Windows PC or Mac. |
| Backup You can backup with a versitile external USB devices. |
| Audio recording You can record 4 sound inputs simultaneously. Moreover, you can listen to the sound in search and live monitoring and play mode. |
| Various recording methods This provides convenient use with manual recording, recording by dates and days, hourly schedule recording, sensor and motion detection event recording and others to enable unmanned monitoring. |
| Various total monitoring features You can cover any security scenario through various sensor inputs and contact output control. |
| Display information in easy-to-understand information method This enhanced convenience of user by displaying information (date, time, recording method, recording frame number, HDD capacity and others) in monitoring, recording and playing mode in easy-to-understand way. |
| P/T/Z control DVR can send 150 fps (based on 960H) regardless of the local recording and viewing setup regardless with recording setup. |
| Dual CODEC for video transmission DVR can send 120 fps (based on CIF) regardless of the local recording and viewing setup regardless with recording setup. |
| Web browser support You can monitor and playback the video and control the PTZ camera by internet explorer. |
| Built in S.M.A.R.T. You can automatically check the health of the hard disk drives. |
| Language pack Basically DVR has multiple language set, furthermore you can choose the language set if you want. |
| Spot monitoring Spot out can be enable to monitor sequentially in other place. |
| Text inserter(POS Interface) You can operate with the POS and ATM. |
| Video | Camera input | 16 BNC | |
| Available source | Composite/960H/Mixed | ||
| Output | 1 HDMI+1 VGA (simultaneously) / 1 Programmable SPOT with OSD | ||
| Audio | Audio input | 4 RCA | |
| Output | 1 RCA | ||
| Sensor In | 4 (NC / NO) | ||
| Alarm out | 1 relay | ||
| Operating System | Embedded Linux OS | ||
| Display | Speed | Real Time | |
| Resolution (Pixel) | 1280×1024, 1280×720, 1920×1080 | ||
| Split screen | 1,4,6,8,9,13,16 | ||
| Recording | CODEC | H.264 / JPEG for 3G, Dual CODEC | |
| Resolution (Pixel) | 960H(WD1), D1, CIF, Mixed | ||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||
| Speed | NTSC area PAL area |
480fps@CIF 400fps@CIF |
|
| Playback | Display | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event, POS, Panorama, Thumbnail | ||
| Speed | NTSC PAL |
480fps@CIF 400fps@CIF |
|
| Fast/Slow speed | Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16, ×32, ×64, ×1/2, ×1/4], Frame to frame, Pause | ||
| Network | Network Interface | Gigabit Ethernet | |
| Speed | 15fps@WD1 | ||
| Protocol | TCP/IP, HTTP, DHCP | ||
| Application | Windows 2000 / XP / Vista / 7 / 8 (PC Client system& IE) / MAC | ||
| Web Browser | Internet Explorer, Safari, Firefox | ||
| Smart phone App | CatchEye : Android, iPhone for live and search | ||
| Backup | Interface | USB 2.0 × 2 | |
| Backup device | External CD&DVD-RW, Network, Thumb Drive | ||
| The number of HDD | 1 SATA(No capacity limit: 4TB of more) | ||
| Others | Power Consumption | 24W | |
| Operating Temperature | 5 ~ 40°C(41 ~ 104°F) | ||
| Relative Humidity | Maximum 80% non-condensing | ||
| Dimension | 300(W) × 210(D) × 48(H) mm | ||
