POE Injector with enhanced Power over Ethernet for OUTREACH

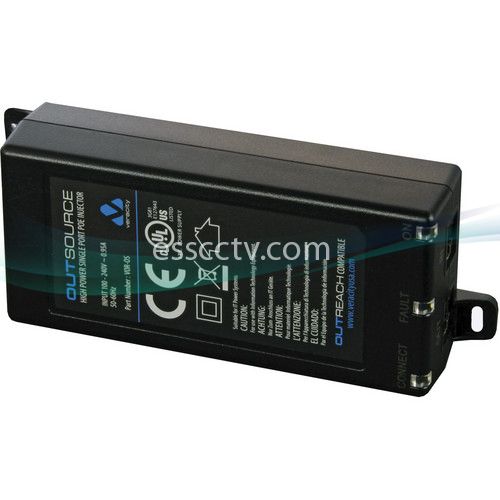

OUTSOURCE is a compact Power over Ethernet (POE) injector. It injects industry-standard IEEE 802.3af POE onto Cat 5 or similar network cabling to deliver reliable remote power to IP cameras, wireless access points (APs) and other devices.
OUTSOURCE can also deliver enhanced POE to OUTREACH Max for inceased range extension and POE power.
Upgrade to POE Plus easily
Simply route a single network connection through OUTSOURCE , and it will automatically inject electrical power onto the cable whenever it detects a compatible device.
Designed for straightforward installation, OUTSOURCE is a compact, wall-mountable unit with a sealed, fanless design for reliability. Safety is assured as PoE will only be enabled to compliant equipment, and overload protection is incorporated.
OUTSOURCE supports Gigabit Ethernet as well as 100BASE-T and 10BASE-T. It supports both IEEE 802.3at (POE Plus) and 802.1af (regular POE).
Enhanced power for OUTREACH Max
OUTSOURCE can deliver enhanced POE power to Veracity's OUTREACH Max network extender, enabling extension of POE Plus Ethernet connections to higher-power devices over longer distances.
OUTSOURCE can be used as a midspan injector for all 802.3af POE devices, including:
IEEE 802.3af (POE, all device classes)
IEEE 802.3af enhanced (for OUTREACH)
Input voltage 90-264VAC, 47-63Hz
Maximum current 0.5A
RJ45 - Network
RJ45 - Network / POE out
IEC 3 pin - AC line power
140 x 65 x 36mm (excl tabs)
(6.0 x 2.6 x 1.4in)
