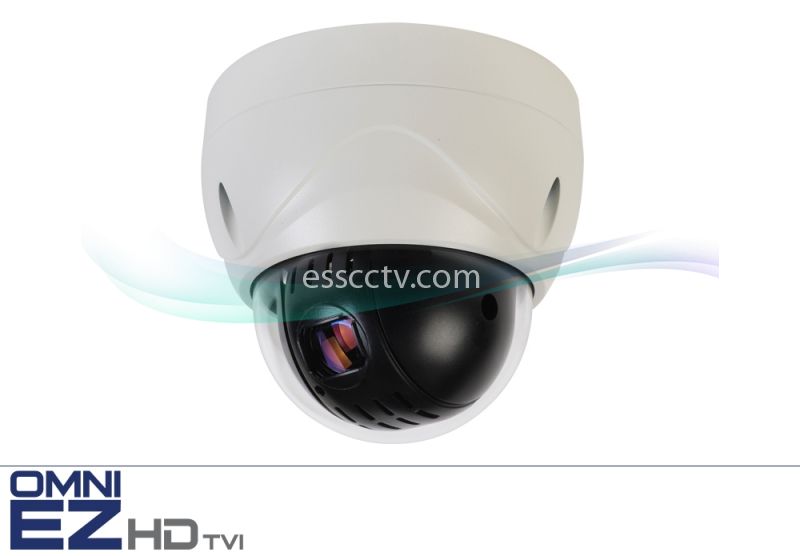

KT&C KEZ-c2SR12 OMNI EZ HD-TVI Camera, 1080p PTZ Speed Dome, 12x Optical Zoom, IP66

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KEZ-c2SR12 OMNI EZ HD-TVI Camera, 1080p PTZ Speed Dome, 12x Optical Zoom, IP66: KEZ-c2SR12

Additional Image for KT&C KEZ-c2SR12 OMNI EZ HD-TVI Camera, 1080p PTZ Speed Dome, 12x Optical Zoom, IP66: Optional Wall Mount

Additional Image for KT&C KEZ-c2SR12 OMNI EZ HD-TVI Camera, 1080p PTZ Speed Dome, 12x Optical Zoom, IP66: Diagram

Model: KEZ-c2SR12
Item #: 57
Manufacturer: KT&C USA

MSRP: $1,100.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC

Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback

Field select 1080p30/25 or 720p60/50

Operation over ‘almost any’ wire

More than 1000 feet on standard RG59 coax

More than 1500 feet on RG6

More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL passive balun pair).

Full time NTSC/PAL selectable analog video output

True day/night operation with automatic ICR module

Excellent low light sensitivity plus Digital slow shutter (DSS) to improve low light performance *

BLC & Electronic WDR functions handle bright and unbalanced lighting conditions

Includes 3D and 2D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization

Optical zoom magnification of 12X (4.8~57.6mm) for horizontal field of view range from 64.2° ~ 5.9°

Multiple focus options: continuous automatic, ‘one touch’ to hold the focus set after movement, and manual

Optical 12X zoom plus 10X digital zoom in camera for total zoom ratio of 120X

Fast 360°/sec pan speed quickly reaches any preset position

Digital auto-flip option to continuously track motion down though the vertical and back up the other side

Programmable presets, scan zones, patterns, tours, and ‘smart’ privacy masks, including combinations of functions

Presets, tours, scans or patterns can be initiated by 4 alarm inputs or after periods of inactivity

Easy to use OSD setup menu plus on-screen data display with flexible screen position and password protection

Flexible programming and control Up the Cable or via RS-485 using Pelco-P or Pelco-D protocols

SD/analog TV Out allows setup, aim and focus using a standard hand held test monitor

Power Source 24VAC with built in power input surge protection

Robust environmental performance, operating down to -40 degrees with IP66 weather resistance

OPTIONAL wall mount (with arm) sold separately

Pickup Device				1/2.8” 2.38 megapixel Color Progressive CMOS sensor
Pixels				1944x1224
Minimum Illumination**				DSS Off: 1.0 lux color; 0.5 lux B/W DSS Max: .002 lux color; .001 lux B/W
Digital Slow Shutter				Programmable Off or 2X~30X; max 4X recommended
S/N Ratio				Max. 50dB
Video Format Main Output				EZHD
Resolution Main Output				Field select HD1080 or HD720
Video Mode Main Output				Field select 1080p30/25; 720p60/50
Main Output Connector				BNC-F
Video Format Test Output				700TVL CVBS NTSC/PAL selectable
Analog Video Output Connector				BNC-F
Electronic Shutter				Auto/Manual selectable 1/30(25) ~ 1/50000 sec., Flickerless
Lens Focal Length & Angle of View				12X zoom: 4.8mm wide ~ 57.6mm tele (F2.2~2.3) Vertical:37.5deg(wide), 3.3deg(tele) Horizontal: 64.2deg(wide), 5.9deg(tele) Diagonal: 71.7de- g(wide), 6.7deg(tele)
Digital Zoom				Up to 10X; optional activation after full 12X optical zoom; 120X total
Auto Focus				Choose manual, auto or ‘one touch’ (holds focus after initial setting follow- ing movement)
Pan and Tilt Range and Speed				Pan: Speed up to 360°/sec; continuous 360° rotation 180° range (+/- 90°); digital auto flip at bottom for continuous tracking Maximum preset speed 360°/second; manual speed proportional to zoom ratio
True Day/Night Control				Yes (Auto IR cut filter removal); Manual select auto, day, night or EXT
Digital Wide Dynamic Range				WDR/BLC/HLC selectable
Brightness				1~100
Auto Gain Control				Off, 2~42dB
Auto White Balance				ATW/Push/Manual/Indoor/Outdoor
DNR				2DNR/3DNR/Auto
OSD Menu				Yes (controlled Up the Cable or via RS-485; optional password protection)
OSD Data Display				Select interval and position for optional display of zoom level, camera ID, mode and/or angle
Image Flip				Digital auto flip at when camera tilts thought bottom position selectable on/off
Presets				Up to 210 positions may be stored; programmable preset speed
Auto Scan Zones				Up to 8 auto scan zones
Patterns				Up to 6 patterns may be memorized and stored
Tours				Up to 8 tours (consisting of presets, patterns and scans)
Privacy Zones				Up to 7 ‘smart’ zones that automatically adjust relative position as the camera moves
Motion Detection				Off/On
Alarm Inputs				4 NO/NC programmable trigger inputs
Alarm Output				Form “C” relay rated at 12VDC/500mA
Alarm Actions				Go to preset, pattern, scan or tour; optional programmable duration of 3~60 seconds
Other Actions				On inactivity of 1~60 minutes, go to preset position, pattern, scan or tour
Security				Password protection for menu system
Up the Cable Protocols				Pelco-C, Hik-C (Automatic Protocol Detection) on HD-TVI port
RS-485 Protocols Supported				Pelco-P, Pelco D
RS-485 Baud Rate				2400~38,400
RS-485 Addressing				Address range 00~255
Power Supply				24VAC (+/- 10% nominal) 2.5A capacity recommended (heater on); 1.5A recommended (heater off)
Power Consumption				~1.1A heater off; ~2A heater on
Power Input Surge Protection				Built in
Dimensions				Ø6.06 x 5.43”(H) (Dome Bubble Ø 4.49) {Ø154 x 138(H)mm (Dome Bubble Ø112)}
Weight				1.5Kg/4.8 pounds
Operating Temperature				-40°C~60°C ; -40°F~140°F (heater on at 32°F +/- 9°F)
Environmental				IP66 weather resistant
Mounting Provision				Mounts to ceiling; optional wall arm, corner and pole brackets, parapet and pendant mounts
Certifications				FCC, CE
