KT&C KPC-D570NHB Mini Vandal Dome Camera 550TVL, 3.6mm Lens, DC 12V, Flush or Surface Type
KT&C USA

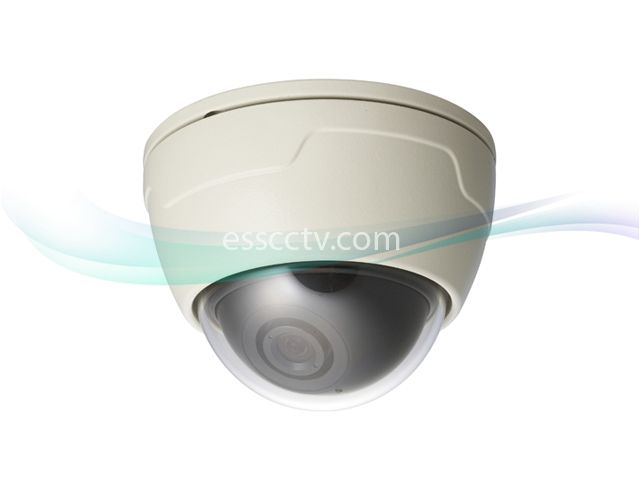

KT&C KPC-D570NHB Mini Vandal Dome Camera 550TVL, 3.6mm Lens, DC 12V, Flush or Surface Type
Images are for illustration purpose and may not show the actual product.
Model: KPC-D570NHB
Item #: 338
Manufacturer: KT&C USA
MSRP: $198.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Mount:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-DI36NB
  • 1/3" Sony Super HAD CCD Ⅱ
  • High Resolution of 550 TVL
  • Fixed Iris Board Lens
  • Min. Illumination of 0.05 Lux/Faceplate
  • Bubble (57Ø), 80Ø x 60.5mm
  • Die-Casting Aluminum Dome Housing
  • Polycarbonate(PC) Dome Cover
  • 3-Axis Gimbal Bracket
  • Pan&Tilt (Pan 360° / Tilt 10~90°)
  • Weatherproof (IP66 Rating)

 SPECIFICATION



Model Name
KPC-D570N/D571N
KPC-D570H/D571H
Image Device 1/3" SONY Super HAD CCD 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 380 TVL 550 TVL
Total Pixels NTSC : 537(H) x 505(V) NTSC : 811(H) x 508(V)
PAL : 537(H) x 597(V) PAL : 795(H) x 596(V)
Effective Pixels NTSC : 510(H) x 482(V) NTSC : 768(H) x 494(V)
PAL : 500(H) x 582(V) PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 0.5 Lux / F2.0 0.05 Lux / Faceplate
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Fixed Board Lens
Electronic Shutter NTSC : 1/60 ~ 100,000 sec  /  PAL : 1/50 ~ 100,000 sec
IP Rating IP66 (Weatherproof)
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 140mA DC12V (±10%), Max. 110mA
Dimensions (mm)

Bubble(Φ57) 81Φ X 60.5

Weight Approx. 220g



 LENS OPTIONS



Type

Normal Board Lens

Focal Length

2.97

3.6

6.0

8.0

Aperture

F2.0

F2.0

F2.0

F2.0

Angle of View

130˚

92˚

53˚

40˚
