KT&C KPC-DNW100NHV15 Indoor IR Dome Camera 550TVL, 2.8~12mm Varifocal Lens, WDR, 30 IR, 100FT, Dual Voltage
KT&C USA

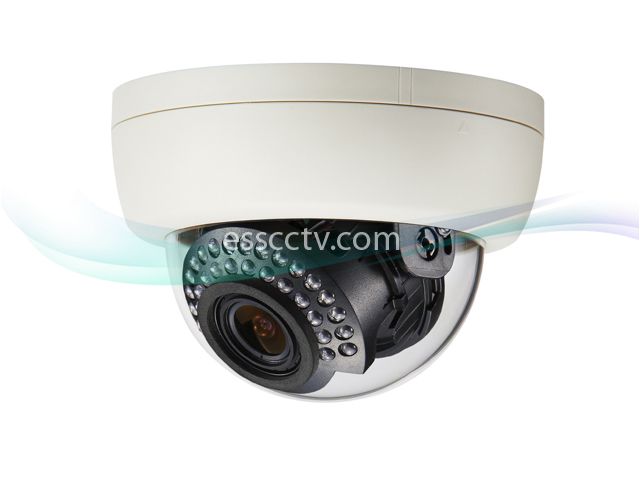

KT&C KPC-DNW100NHV15 Indoor IR Dome Camera 550TVL, 2.8~12mm Varifocal Lens, WDR,  30 IR, 100FT, Dual Voltage
Images are for illustration purpose and may not show the actual product.
Model: KPC-DNW100NHV15
Item #: 337
Manufacturer: KT&C USA
MSRP: $253.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Color:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-DI28V12IRN
  • 1/3” SONY Vertical double-density interline CCD
  • High Resolution of 550TVL
  • DC Iris Vari-Focal Lens
  • Bubble 100(Φ), 136.4Φ x 95.3mm
  • High Performance 30 units IR LEDs
  • Powerful WDR (Wide Dynamic Range) Performance
  • Intensified DSS accumulation field number up to 500x
  • Privacy Zone Masking up to 8 areas
  • Motion Detection wtih level adjustment
  • Multi-Language OSD Menu( (English, Chinese, German, Russian, Spanish)

 SPECIFICATION



Model Name
KPC-DNW100
Image Device 1/3" Sony Vertical Double-Density Interline CCD
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TV Lines
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 48dB (AGC Off)
Min. Illumination 1.0 Lux / F2.0, 0.001 Lux (DSS)
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Vari-Focal
Digital Zoom Ratio 1.0X / 1.5X / 2.0X / 2.5X (WDR Off)
Electronic Shutter NTSC : 1/60 sec  /  PAL : 1/50 sec
Digital Slow Shutter 1~500 Field
WDR Off / On / Auto (Level Adjustable)
BLC Off / Bottom / Lest / Right / Top / Center
AGC Low / Mid / High
Day & Night Digital Day & Night
Motion Detection Zone 6 ea (Level Adjustable)
Privacy Masking Zone 8 ea (Mask On / Off)
White Balance ATW / PUSH / PUSH LOCK / USER (R Gain, B Gain)
OSD Built-in
Language English / Chinese / Russian / Spanish / German
IR LED

850nm, 30ea, up to 30m

IR LED Operation

On (1 Lux) / Off (3 Lux)

Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C)
Humidity Less than 80%
Power Comsumption DC12V DC12V (±10%), Max. 550mA
DC12V/AC24V

AC24V (±10%), Max. 6.8W / DC12V (±10%), Max. 700mA

Dimensions (mm)

Bubble (100Φ),  136.4Φ X 95.3mm

Weight Approx. 343 g



 LENS OPTIONS



Type

Aspheric Vari-Focal DC IRIS Lens (ICR)

Focal Length 9.0 ~ 22.0 2.6 ~ 11.0
Aperture F1.6 ~ 360 F1.2 ~ 360
Angle of View

40.6˚ ~ 16.2˚

133.14˚ ~ 34.55˚



 DIMENSIONS

 3-AXIS ROTATING MECHANISM
