KT&C Color IR Bullet Camera 550 TVL, 45 LED 150 FT, Dual Voltage, External Focus
KT&C USA

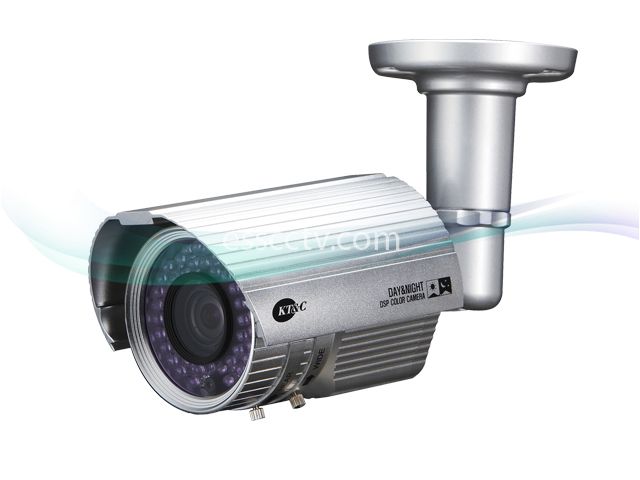

KT&C Color IR Bullet Camera 550 TVL, 45 LED 150 FT, Dual Voltage, External Focus
Images are for illustration purpose and may not show the actual product.
Model: KPC-N700NH10
Item #: 319
Manufacturer: KT&C USA
MSRP: $379.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Camera Upgrade:
Power Supply:

  • This Model has been replaced by a new model.
    Please follow the link: KPC-N701NU

  • If you specifically need this model, please contact us for availability

  • 1/3" Sony Super HAD CCD
  • High Resolution of 550 TVL
  • f= 2.8~12.0mm / 9.0~22.0mm Vari-Focal Lens
  • High Performance 45 units IR LEDs
  • Max. 50M Long Distances Visibility at Night
  • True Day & Night with ICR Mechanism
  • External Zoom & Focus Adjustable
  • Cable concealed bracket, Second Video Connector
  • Dipswitch Controllable Functions (BLC, ATW, AGC, Flickerless)
  • DC12V/AC24V Dual Voltage

 OPTIONAL COLOUR

 SPECIFICATION



Model Name
KPC-N700
Image Device 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TVL
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 0 Lux ( IR LED On)
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Vari-Focal
Electronic Shutter NTSC : 1/60 sec  /  PAL : 1/50 sec
AGC On / Off
Day & Night True Day & Night with ICR Mechanism
IR LED 850nm, 45ea, up to 50m
IR LED Operation On (1Lux) / Off (3Lux)
IP Rating IP67 (Waterproof)
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Heater On : -40˚F ~ 122˚F (-40˚C ~ +50˚C)
Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 1.1A (IR LED On, Heater On)
AC24V (±10%), Max. 21W (IR LED On, Heater On)
Dimensions (mm) Φ78 X 110.5
Weight Approx. 1.37Kg



 LENS OPTIONS



Type

Aspheric Vari-Focal DC IRIS Lens (ICR)

Focal Length 9.0 ~ 22.0 2.8 ~ 12.0
Aperture F1.6 ~ 360 F1.2 ~ 360
Angle of View

40.6˚ ~ 16.2˚

130.4˚ ~ 30.4˚



 DIMENSIONS

 CABLE CONCEALED BRACKET
