KT&C Color Bullet Camera - 550TVL, 1Lux, 4~9mm Varifocal Lens, DC 12V
KT&C USA

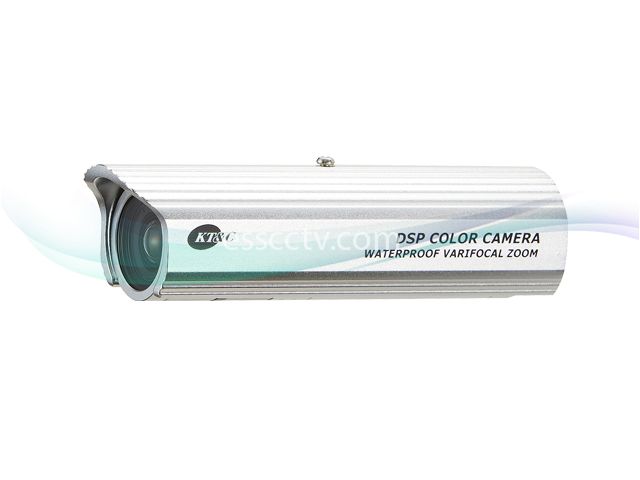

KT&C Color Bullet  Camera - 550TVL, 1Lux, 4~9mm Varifocal Lens, DC 12V
Images are for illustration purpose and may not show the actual product.
Model: KPC-VF325NH
Item #: 312
Manufacturer: KT&C USA
MSRP: $199.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Color:
Power Supply:

  • This Model has been replaced by a new model with smaller body, 700 TVL.
    Please follow the link: KPC-VF291NU
  • If you specifically need this model, please contact us for availability

  • 1/3" Sony Super HAD CCD
  • High Resolution of 550 TVL
  • f=4.0~9.0mm Waterproof Vari-Focal Lens
  • Min. Illumination of 1.0 Lux/F2.0
  • External Zoom & Focus Adjustment
  • Automatic Gain Control
  • Auto Tracking White Balance
  • Auto Backlight Compensation
  • Outstanding Durability with IP67
  • Options : Mirror Mode, Digital Day&Night

 OPTIONAL COLOUR

 SPECIFICATION



Model Name
KPC-VF325
Image Device 1/3" SONY Super HAD CCD
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TVL
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 1.0 Lux / F 2.0
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Vari-Focal
Electronic Shutter NTSC : 1/60~1/100,000 sec  /  PAL : 1/50~1/100,000 sec
IP Rating IP67 (Waterproof)
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 150mA
Dimensions (mm) Φ26 X 99
Weight Approx. 174g



 LENS OPTIONS



Type

Vari-Focal Fixed IRIS Lens (Water-proof)

Focal Length 4.0 ~ 9.0
Aperture F1.6 ~ 2.4
Angle of View

77.3˚ ~ 39.4˚



 DIMENSIONS

 MOUNTING POSITION
