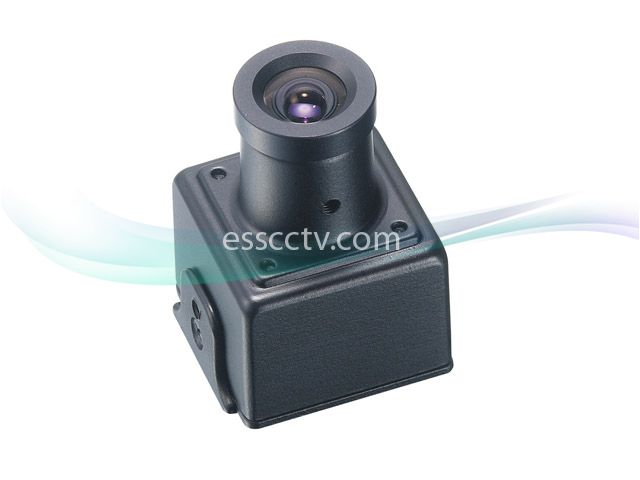

KT&C Color Super Miniature Camera - 550 TVL, 0.05 Lux, 12V, 23mm x 22mm
KT&C USA
KT&C Color Super Miniature Camera - 550 TVL, 0.05 Lux, 12V, 23mm x 22mm
Images are for illustration purpose and may not show the actual product.
Model: KPC-S23NH
Item #: 305
Manufacturer: KT&C USA
MSRP: $140.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Lenses:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-E23NUB
  • 1/3" Sony Super HAD CCD II
  • Super High-Resolution of 550 TVL
  • Extream Clear Cutting Edge Picture
  • Unmatched Low-Light Sensitivity of 0.05 Lux / Faceplate
  • Ultra Compact Size of 23(W) x 22(H) mm Dimension
  • Fixed Iris Board , Pinhole Lens
  • Attractive Design with Non-Reflective Coating


 SPECIFICATION



Model Name
KPC-S23N
KPC-S23H
Image Device 1/3" SONY Super HAD CCD 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 380 TVL 550 TVL
Total Pixels

NTSC: 537(H)x505(V)
PAL: 537(H)x597(V)

NTSC: 811(H)x508(V)
PAL: 795(H)x596(V)

Effective Pixels

NTSC: 510(H)x492(V)
PAL: 500(H)x582(V)

NTSC: 768(H)x494(V)
PAL: 752(H)x582(V)

S/N Ratio More than 48dB (AGC Off)
Min. Illumination 0.5 Lux  / F2.0 0.05 Lux  / Faceplate
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Fixed Board Lens / Pinhole Lens
Electronic Shutter NTSC : 1/60 ~ 1/100,000 sec  /  PAL : 1/50 ~ 1/100,000 sec
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 100mA DC12V (±10%), Max. 110mA
Dimensions (mm) 22.4 (W) X 23 (H) X 29.5 (D)
Weight Approx. 76g



 LENS OPTIONS



Type

Board Lens

Pinhole Lens

P1

P3

P4

Focal Length 2.45 2.97 3.6 6 8 12 16 3.7 3.7 4.3
Aperture F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0
Angle of View

150˚

130˚

92˚

53˚

40˚

28˚

19˚

90˚

90˚

78˚



 DIMENSIONS

  MOUNTING POSITION
