• 1/4” SONY Super HAD CCD
• Zoom Magnification: x33 Optical Zoom, x12 Digital Zoom (Max x396 Zoom)
• Day & Night / Privacy Mask / HLC Function
• Various Focus Mode: Auto-Focus / Manual Focus / Semi-Auto Focus.
• Various Setup Options in OSD Menu

Advance Pan/Tilt Functions

• Max. 360°/sec high speed Pan/Tilt Motion
• Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result, time to target view is reduced dramatically and the video on the monitor is very natural to watch.
• The ultra slow speed of 0.05°/sec. can be reached by using the jogging operation. It is very easy to locate the camera to desired target..

Preset / Pattern / Swing / Group / Privacy Mask and More

• MAX. 127 Presets are assignable and characteristics of each preset can be set up independently, such as White Balance, Auto Exposure, Label, Digital Outputs and so on.
• Max. 8 set of Swing action can be stored. This enables to move camera repetitively between two preset positions with designated speed.
• Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory operated by joystick as closely as possible.
• Max. 8 set of Group action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Swing. A Group is composed of maximum 20 entities of Preset / Pattern / Swings.
• Privacy Masks are assignable, not to intrude on other’s privacy. (8 Privacy Zones) The availability for Privacy Mask function should be different by models.

PTZ(Pan/Tilt/Zoom) Control

• With RS-485 communication, maximum 255 of cameras can be controlled at the same time.
• Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.

OSD (On Screen Display) Menu

• OSD menu is provided to display the status of camera and to configure the functions interactively.
• The information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on screen.

Alarm I/O Functions

• 3 alarm sensor Inputs and 1 alarm Output relays are available.
• To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler and the relay is used for alarm output.
• The signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.
• If an external sensor is activated, camera can be set to move to the corresponding Preset position. Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions such as turning on the light or sound the alarm.

Reserved Presets for Special Purpose

• Most camera characteristics can be set up easily and directly with reserved preset, not entering into OSD menu. For more information, refer to “Reserved Preset” in this manual.

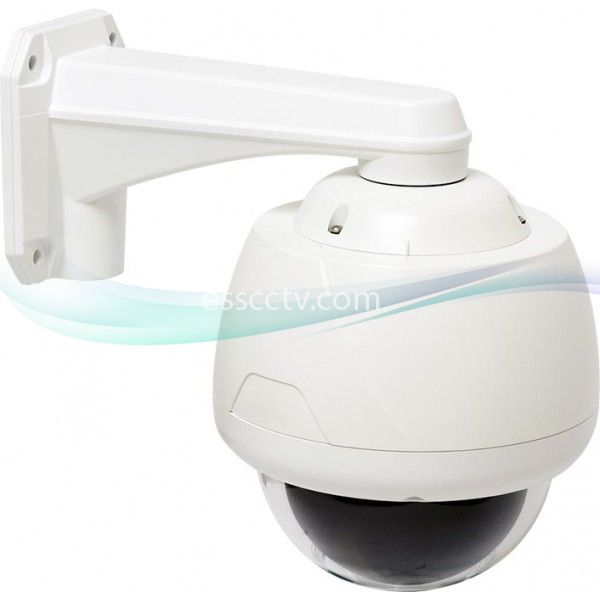

Easy Installation and Perfect Outdoor Environment Compatibility

• Fans and heaters are built-in in camera for cold and hot temperature environment. Also idealistic mechanical design protects camera from water and dust. (IP 66 when installed properly with wall mount bracket only)
• It is easy to install and maintain camera with terminal for cable connection in brackets.
