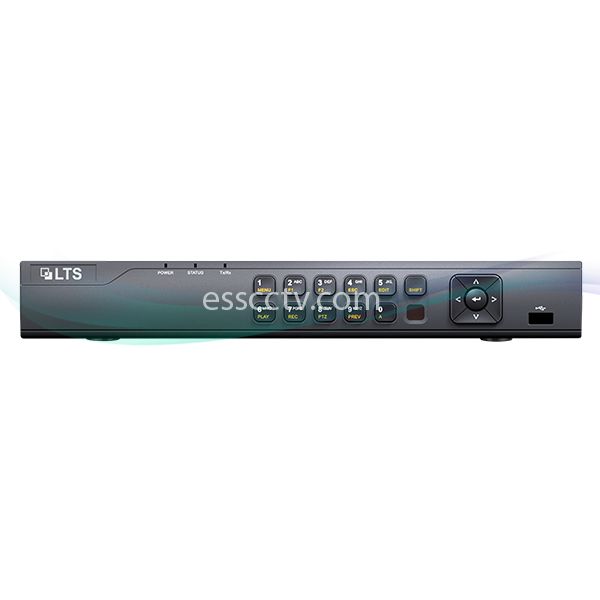

LTS LTD8304T-ET 4CH HD TVI & 1CH IP Hybrid Megapixel 1080P VGA HDMI CVBS Spot Output DVR
Images are for illustration purpose and may not show the actual product.
Model:
LTD8304T-ET
Item #: 1408
Manufacturer: LT Security Inc
MSRP:
$140.00
Our Price:
$90.00
(You save: $50.00)
-
4 Channel HD-TVI Video Recorder
-
Support Live View, Storage, Playback up to 4 HD-TVI / Analog / Analog HD Cameras+ 1 IP Camera
-
Up to 1080P (1920x1080) HDMI Video Output
-
Efficient Mode Recording : 960 x 1080 @30fps
-
CVBS Output
-
1 SATA up to 6TB HDD
-
H.264/H.264 Zip+
| Video/ Audio Input |
| Video Compression |
H.264+ |
| Video Input |
4ch/ BNC (1.0 Vp-p, 75Ω), PAL / NTSC Self-adaptive |
| IP Input |
1ch (Support ONVIF, up to 2MP resolution) |
| Audio Compression |
G.711u |
| Audio Input |
1-ch, RCA (2.0 V-p, 1kΩ) |
| Two-Way Audio Input |
1-ch, RCA (2.0 V-p, 1kΩ) |
| Video/ Audio Output |
| HDMI/ VGA Output |
1920x1080 |
| CVBS Output |
1-ch, BNC (1.0 V-P, 1kΩ) |
| Frame Rate |
Main Stream: 1/16 fps to real time frame rate/ Sub Stream: WD1/ 4CIF@12fps, CIF/QVGA/QCIF @real time frame rate |
| Video Bit Rate |
32 Kbps - 6Mbps |
| Audio Output |
1-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate |
64 Kbps |
| Dual-Stream |
Support |
| Stream Type |
Video, Video & Audio |
| Synchronous Playback |
4ch |
| Network |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iS CSI, UPnP™, HTTPS |
| Hard Disk |
| SATA |
1 SATA |
| Capacity |
Up to 6TB capacity for each disk |
| External Interface |
| Network Interface |
1:10M/ 100M self-adaptive Ethernet interface |
| Serial Interface |
RS-485 |
| USB Port |
2 X USB2.0 |
| Alarm In/ Out |
- |
| General |
| Power Supply |
DC 12V |
| Consumption |
≤15W |
| Working Temperature |
-10°C ~ + 55°C (14°F - 131°F) |
| Working Humidity |
10% ~ 90% |
| Chassis |
Compact 1U Chassis |
| Dimesnsions |
315 X 242 X 45mm (12.94 X 9.5 X 1.8 inch) |
| Weight |
≤2Kg (4.4lb) |
