> Item #1111

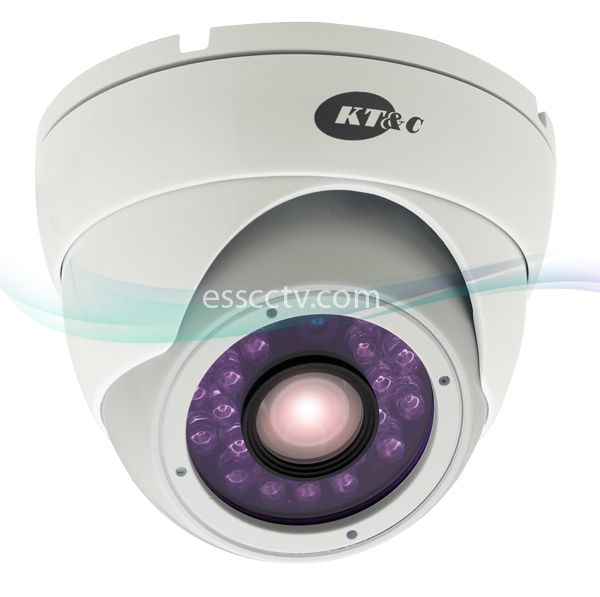

KT&C KEZ-c2TR4IR OMNI EZ HD-TVI Camera 1080p Outdoor Turret Dome, 2.8-12mm, 20 IR LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KEZ-c2TR4IR OMNI EZ HD-TVI Camera 1080p Outdoor Turret Dome, 2.8-12mm, 20 IR LED: KEZ-c2TR4IR

Additional Image for KT&C KEZ-c2TR4IR OMNI EZ HD-TVI Camera 1080p Outdoor Turret Dome, 2.8-12mm, 20 IR LED: Diagram

Model: KEZ-c2TR4IR
Item #: 1111
Manufacturer: KT&C USA

MSRP: $130.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

1080p HD-TVI Outdoor Turret with IR

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

Field select 1080p/720p 30/25

HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service

Operation over ‘almost any’ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/2.8” progressive scan CMOS sensor

3.6mm megapixel lens to capture the desired field of view

Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions

Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)

True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Wide Dynamic Range for bright or unbalanced scene lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details

IP66 weather resistant, vandal resistant metal housing

Choice of black or white housing color to blend or contrast with the décor

Operating temperature range of 14°F~122°F

12VDC operation with low current draw

Imaging Device	1/2.8" Progressive Scan CMOS
Video Format	Main Output: 1080p/720p HD-TVI 30/25FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video
Picture Elements	1984 (H) x 1105 (V)
Effective Picture Elements	1920 (H) x 1080 (V)
Horizontal Resolution	More than 1080 HTVL (1080p mode)
Sensitivity	0 lux IR on
Day/Night Type	True Day/Night with ICR motorized filter control
Lens Type	Megapixel Fixed Focal Length f=3.6mm board type
IR LED	20 LED, 850nm
IR Range	66’ / 20m †
Smart IR Exposure Adjust	Adjustable Off/low/mid/high
Video Output Connector Type	TVI and CVBS: BNC 75Ω
Sync. Mode	Internal
OSD Menu	Multiple functions using UTC Control
OSD Languages	English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control	Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
DWDR/BLC/HSBLC	OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control	OFF; 2~42dB
Electronic Shutter	Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance	Auto / Push Lock / Manual
Color Correction	Gamma 0.45~.65, adjustable
Day & Night	Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control
Digital Slow Sutter [DSS]	DSS low light boost Off/Auto 2X~16X*
3D-DNR	Off/Low/Mid/High
Digital Zoom	1X~8X
Defog	Off/Low/Mid/High
Mirror	Off / H-flip, V-flip, rotate
Motion Detection	Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask	Off/On with full programmability for 8 selectable zones
Lens Shading Compensation)	Off/Low/Mid/High
DPC (Defective Pixel Correction)	Off/On
Other OSD Functions	Camera Title with position, Font Color; Image Sharpness
Power Source	12VDC
Power Consumption	12VDC:390mA
Operating Temperature	14 °F ~ 122 °F (-10 °C ~ 50 °C)
Environmental	IP66 weather resistant
Mechanical	Metal ball and base, with base removable for easy mounting
Positioning	3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360°
Dimensions	Ø5.14” × 3.67” [Ø93 × 63mm]
Weight	.73 lbs./332g
Certifications	CE / FCC / RoHS
